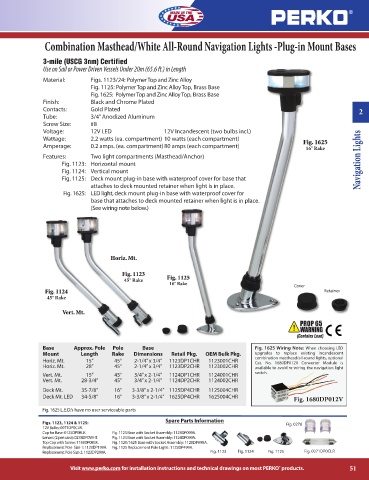

Page 51 - Perko

Combination Masthead/White All-Round Navigation Lights -Plug-in Mount Bases

3-mile (USCG 3nm) Certified
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Figs. 1123/24: Polymer Top and Zinc Alloy
Fig. 1125: Polymer Top and Zinc Alloy Top, Brass Base
Fig. 1625: Polymer Top and Zinc Alloy Top, Brass Base
Finish: Black and Chrome Plated
Contacts: Gold Plated 2
Tube: 3/4” Anodized Aluminum
Screw Size: #8
Voltage: 12V LED 12V Incandescent (two bulbs incl.)
Wattage: 2.2 watts (ea. compartment) 10 watts (each compartment) Fig. 16 25
Amperage: 0.2 amps. (ea. compartment)80 amps (each compartment)
16° Rake
Features: Two light compartments (Masthead/Anchor) Navigation Lights
Fig. 1123: Horizontal mount
Fig. 1124: Vertical mount
Fig. 1125: Deck mount plug-in base with waterproof cover for base that
attaches to deck mounted retainer when light is in place.
Fig. 1625: LED light, deck mount plug-in base with waterproof cover for
base that attaches to deck mounted retainer when light is in place.
(See wiring note below.)

Horiz. Mt.

Fig. 1123
45° Rake Fig. 1125
16° Rake
Cover
Fig. 1124 Retainer
45° Rake
Vert. Mt.

Base Approx. Pole Pole Base Fig. 1625 Wiring Note: When choosing LED
Mount Length Rake Dimensions Retail Pkg. OEM Bulk Pkg. upgrades to replace existing incandescent
combination masthead/all-round lights, optional
Horiz. Mt. 15” 45° 2-1/4” x 3/4” 1123DP1CHR 1123001CHR Cat. No. 1680DP012V Converter Module is
Horiz. Mt. 28” 45° 2-1/4” x 3/4” 1123DP2CHR 1123002CHR available to avoid re-wiring the navigation light
switch.
Vert. Mt. 15” 45° 3/4” x 2-1/4” 1124DP1CHR 1124001CHR
Vert. Mt. 28-3/4” 45° 3/4” x 2-1/4” 1124DP2CHR 1124002CHR
Deck Mt. 35-7/8” 16° 3-3/8” x 2-1/4” 1125DP4CHR 1125004CHR
Deck Mt. LED 34-5/8” 16° 3-3/8” x 2-1/4” 1625DP4CHR 1625004CHR
Fig. 1680DP012V
Fig. 1625 L.E.D.’s have no user serviceable parts
Spare Parts Information
Figs. 1123, 1124 & 1125: Fig. 0278
12V Bulbs: 0071DP0CLR.
Cap for Base: 0125DP0BLK Fig. 1123 Base with Socket Assembly: 1123DP099A.
Lenses (2 per card): 0278DP0WHT. Fig. 1124 Base with Socket Assembly: 1124DP099A.
Top Cap with Screw: 1158DP0BLK. Fig. 1125/1625 Base with Socket Assembly: 1125DP099A.
Replacement Pole Size 1: 1123DP199A. Fig. 1125 Replacement Pole Light : 1125DP499A.
Replacement Pole Size 2: 1123DP299A. Fig. 1123 Fig. 1124 Fig. 1125 Fig. 0071DP0CLR

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 51
®
