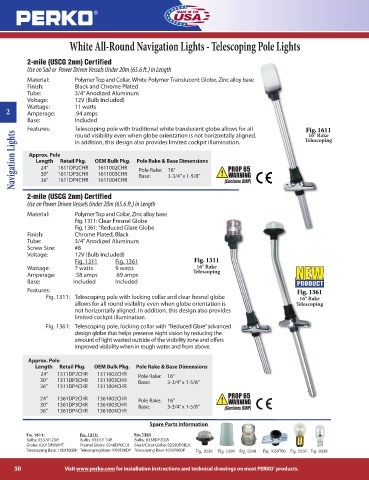

Page 50 - Perko

White All-Round Navigation Lights - Telescoping Pole Lights

2-mile (USCG 2nm) Certified
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Polymer Top and Collar, White Polymer Translucent Globe, Zinc alloy base
Finish: Black and Chrome Plated
Tube: 3/4” Anodized Aluminum
Voltage: 12V (Bulb Included)
Wattage: 11 watts
2 Amperage: .94 amps
Base: Included
Features: Telescoping pole with traditional white translucent globe allows for all Telescoping
Fig. 1611
Navigation Lights Approx. Pole Pole Rake: 16°
round visibility even when globe orientation is not horizontally aligned.
16° Rake
In addition, this design also provides limited cockpit illumination.
Length Retail Pkg. OEM Bulk Pkg. Pole Rake & Base Dimensions
24” 1611DP2CHR 1611002CHR
30” 1611DP3CHR 1611003CHR
3-3/4” x 1-5/8”
Base:
36” 1611DP4CHR 1611004CHR
2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Polymer Top and Collar, Zinc alloy base
Fig. 1311: Clear Fresnel Globe
Fig. 1361: “Reduced Glare Globe
Finish: Chrome Plated, Black
Tube: 3/4” Anodized Aluminum
Screw Size: #8
Voltage: 12V (Bulb Included)
Fig. 1311 Fig. 1361 Fig. 1311
Wattage: 7 watts 9 watts 16° Rake
Amperage: .58 amps .69 amps Telescoping
Base: Included Included
Features: Fig. 1361
Fig. 1311: Telescoping pole with locking collar and clear fresnel globe 16° Rake
allows for all round visibility even when globe orientation is Telescoping
not horizontally aligned. In addition, this design also provides
limited cockpit illumination.
Fig. 1361: Telescoping pole, locking collar with “Reduced Glare” advanced
design globe that helps preserve night vision by reducing the
amount of light wasted outside of the visibility zone and offers
improved visibility when in rough water and from above.

Approx. Pole
Length Retail Pkg. OEM Bulk Pkg. Pole Rake & Base Dimensions
24” 1311DP2CHR 1311002CHR Pole Rake: 16°
30” 1311DP3CHR 1311003CHR Base: 3-3/4” x 1-5/8”
36” 1311DP4CHR 1311004CHR

24” 1361DP2CHR 1361002CHR Pole Rake: 16°
30” 1361DP3CHR 1361003CHR Base: 3-3/4” x 1-5/8”
36” 1361DP4CHR 1361004CHR

Spare Parts Information
FIG. 1611: FIG. 1311: FIG. 1361
Bulbs: 0337012DP. Bulbs: 0337011DP Bulbs: 0338DP2CLR
Globe: 0201DP0WHT. Fresnel Globe: 0248DP0CLR Black/Clear Globe: 0239DP0BLK.
Telescoping Base: 1059T00DP Telescoping Base: 1059T00DP Telescoping Base: 1059T00DP Fig. 0239 Fig. 0201 Fig. 0248 Fig. 1059T00 Fig. 0337 Fig. 0338

50 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
