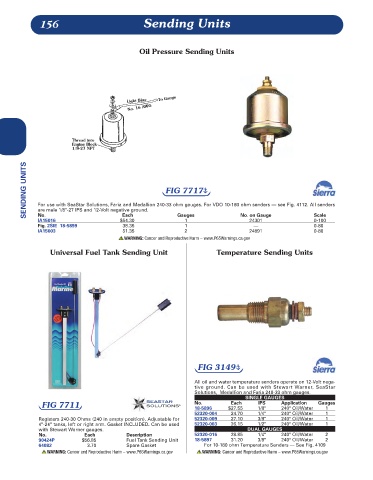

156 Sending Units

Oil Pressure Sending Units

SENDING UNITS For use with SeaStar Solutions, Faria and Medallion 240-33 ohm gauges. For VDO 10-180 ohm senders — see Fig. 4112. All senders

FIG 7717b

are male 1/8"-27 IPS and 12-Volt negative ground.
No.
Each
0-100
24301
1
IA15016 $54.30 Gauges No. on Gauge Scale
Fig. 2SIE 18-5899 38.35 1 — 0-80
IA15003 51.35 2 24891 0-80
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Universal Fuel Tank Sending Unit Temperature Sending Units

FIG 3149b

All oil and water temperature senders operate on 12-Volt nega-
tive ground. Can be used with Stewart Warner, SeaStar
Solutions, Medallion and Faria 240-33 ohm gauges.
SINGLE GAUGES
FIG 7711 No. Each IPS Application Gauges
18-5896 $27.55 1/8" 240° Oil/Water 1
52320-004 24.70 1/4" 240° Oil/Water 1
Registers 240-30 Ohms (240 in empty position). Adjustable for 52320-009 27.10 3/8" 240° Oil/Water 1
4"-24" tanks, left or right arm. Gasket INCLUDED. Can be used 52320-003 26.15 1/2" 240° Oil/Water 1
with Stewart Warner gauges. DUAL GAUGES
No. Each Description 52320-016 28.85 1/4" 240° Oil/Water 2
90424P $56.85 Fuel Tank Sending Unit 18-5897 31.20 3/8" 240° Oil/Water 2
64082 3.70 Spare Gasket For 10-180 ohm Temperature Senders — See Fig. 4109
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
