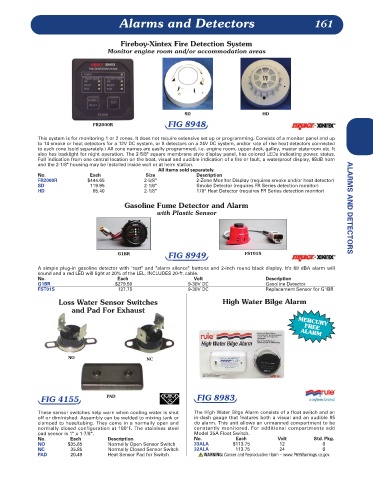

Alarms and Detectors 161

Fireboy-Xintex Fire Detection System
Monitor engine room and/or accommodation areas

SD HD
FR2000R FIG 8948

This system is for monitoring 1 or 2 zones. It does not require extensive set up or programming. Consists of a monitor panel and up
to 14 smoke or heat detectors for a 12V DC system, or 8 detectors on a 24V DC system, and/or rate of rise heat detectors connected
to each zone (sold separately.) All zone names are easily programmed, i.e. engine room, upper deck, galley, master stateroom etc. It
also has backlight for night operation. The 2-5/8" square membrane style display panel, has colored LEDs indicating power, status.
Full indication from one central location on the boat, visual and audible indication of a fire or fault, a waterproof display, 68dB horn
and the 2-1/8" housing may be installed inside wall or at helm station.
All items sold separately.
No. Each Size Description
FR2000R $444.65 2-5/8" 2-Zone Monitor Display (requires smoke and/or heat detector)
SD 119.95 2-1/6" Smoke Detector (requires FR Series detection monitor)
HD 85.40 2-1/8" 170° Heat Detector (requires FR Series detection monitor)

Gasoline Fume Detector and Alarm ALARMS AND DETECTORS
with Plastic Sensor

G1BR FIG 8949 FST01S

A simple plug-in gasoline detector with "test" and "alarm silence" buttons and 2-inch round black display. It's 68 dBA alarm will
sound and a red LED will light at 20% of the LEL. INCLUDES 20-ft. cable.
No. Each Volt Description
G1BR $279.50 9-30V DC Gasoline Detector
FST01S 127.75 9-30V DC Replacement Sensor for G1BR
Loss Water Sensor Switches High Water Bilge Alarm
and Pad For Exhaust

MERCURY
FREE
ALARM

NO NC

PAD
FIG 4155 FIG 8983

These sensor switches help warn when cooling water is shut The High Water Bilge Alarm consists of a float switch and an
off or diminished. Assembly can be welded to mixing tank or in-dash gauge that features both a visual and an audible 85
clamped to hose/tubing. They come in a normally open and db alarm. This unit allows an unmanned compartment to be
normally closed configuration at 180°F. The stainless steel constantly monitored. For additional compartments add
pad sensor is 1" x 1-7/8". Model 35A Float Switch.
No. Each Description No. Each Volt Std. Pkg.
NO $35.85 Normally Open Sensor Switch 33ALA $113.75 12 6
NC 35.85 Normally Closed Sensor Switch 32ALA 113.75 24 6
PAD 20.49 Heat Sensor Pad for Switch WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
