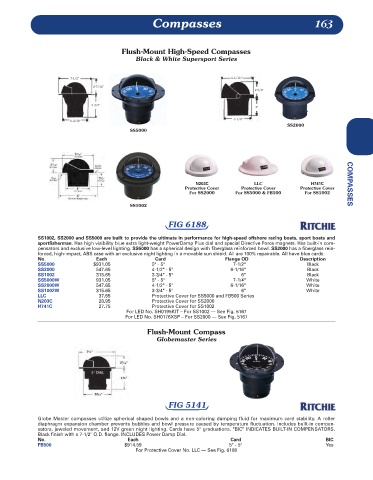

Compasses 163

Flush-Mount High-Speed Compasses
Black & White Supersport Series

7-1/2" 6-1/16"
2-7/16"
2-5/8"

4-3/4"
3"
5-1/8"
6-3/16"
SS2000
SS5000

N203C LLC H741C COMPASSES
Protective Cover Protective Cover Protective Cover
For SS2000 For SS5000 & FB500 For SS1002

SS1002

FIG 6188

SS1002, SS2000 and SS5000 are built to provide the ultimate in performance for high-speed offshore racing boats, sport boats and
sportfisherman. Has high visibility blue extra light-weight PowerDamp Plus dial and special Directive Force magnets. Has built-in com-
pensators and exclusive low-level lighting. SS5000 has a spherical design with fiberglass reinforced bowl. SS2000 has a fiberglass rein-
forced, high-impact, ABS case with an exclusive night lighting in a movable sun shield. All are 100% repairable. All have blue cards.
No. Each Card Flange OD Description
SS5000 $931.05 5" - 5° 7-1/2" Black
SS2000 547.65 4-1/2" - 5° 6-1/16" Black
SS1002 315.65 3-3/4" - 5° 6" Black
SS5000W 931.05 5" - 5° 7-1/4" White
SS2000W 547.65 4-1/2" - 5° 6-1/16" White
SS1002W 315.65 3-3/4" - 5° 6" White
LLC 37.55 Protective Cover for SS5000 and FB500 Series
N203C 28.95 Protective Cover for SS2000
H741C 27.75 Protective Cover for SS1002
For LED No. SH0195KIT – For SS1002 — See Fig. 5167
For LED No. SH0176XSP – For SS2000 — See Fig. 5167

Flush-Mount Compass
Globemaster Series

FIG 5141

Globe Master compasses utilize spherical shaped bowls and a non-coloring damping fluid for maximum card stability. A roller
diaphragm expansion chamber prevents bubbles and bowl pressure caused by temperature fluctuation. Includes built-in compen-
sators, jeweled movement, and 12V green night lighting. Cards have 5° graduations. "BIC" INDICATES BUILT-IN COMPENSATORS.
Black finish with a 7-1/2" O.D. flange. INCLUDES Power Damp Dial.
No. Each Card BIC
FB500 $914.59 5" - 5° Yes
For Protective Cover No. LLC — See Fig. 6188
