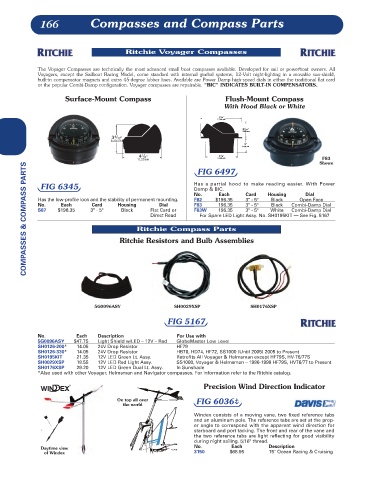

166 Compasses and Compass Parts

Ritchie Voyager Compasses

The Voyager Compasses are technically the most advanced small boat compasses available. Developed for sail or powerboat owners. All
Voyagers, except the Sailboat Racing Model, come standard with internal gimbal systems, 12-Volt night-lighting in a movable sun-shield,
built-in compensator magnets and extra 45-degree lubber lines. Available are Power Damp high-speed dials in either the traditional flat card
or the popular Combi-Damp configuration. Voyager compasses are repairable. "BIC" INDICATES BUILT-IN COMPENSATORS.
Surface-Mount Compass Flush-Mount Compass
With Hood Black or White

F83
Shown
COMPASSES & COMPASS PARTS
FIG 6497

FIG 6345 Has a partial hood to make reading easier. With Power
Damp & BIC.
No. Each Card Housing Dial
Has the low-profile look and the stability of permanent mounting. F82 $196.35 3" - 5° Black Open Face
No. Each Card Housing Dial F83 196.35 3" - 5° Black Combi-Damp Dial
S87 $196.35 3" - 5° Black Flat Card or F83W 196.35 3" - 5° White Combi-Damp Dial
Direct Read For Spare LED Light Assy. No. SH0195KIT — See Fig. 5167

Ritchie Compass Parts
Ritchie Resistors and Bulb Assemblies

5G0096ASY SH0029XSP SH0176XSP

FIG 5167

No. Each Description For Use with
5G0096ASY $47.75 Light Shield w/LED – 12V – Red GlobeMaster Low Level
SH0126-200* 14.05 24V Drop Resistor HF79
SH0126-330* 14.05 24V Drop Resistor HB70, HD74, HF72, SS1000 (Until 2005) 2005 to Present
SH0195KIT 21.35 12V LED Green Lt. Assy. Retrofits All Voyager & Helmsman except HF79S, HV-76/77S
SH0029XSP 18.55 12V LED Red Light Assy. SS1000, Voyager & Helmsman – 1986-1999 HF79S, HV76/77 to Present
SH0176XSP 29.20 12V LED Green Dual Lt. Assy. In Sunshade
*Also used with other Voyager, Helmsman and Navigator compasses. For information refer to the Ritchie catalog.

Precision Wind Direction Indicator

On top all over FIG 6036b
the world
Windex consists of a moving vane, two fixed reference tabs
and an aluminum pole. The reference tabs are set at the prop-
er angle to correspond with the apparent wind direction for
starboard and port tacking. The front and rear of the vane and
the two reference tabs are light reflecting for good visibility
during night sailing. 5/16" thread.
No. Each Description
Daytime view
of Windex 3150 $68.95 15" Ocean Racing & Cruising
