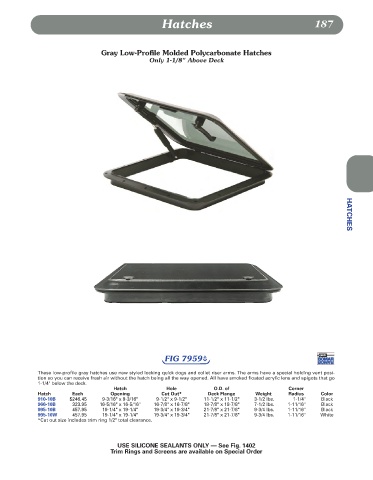

Hatches 187

Gray Low-Profile Molded Polycarbonate Hatches
Only 1-1/8" Above Deck

FIG 7959b HATCHES

These low-profile gray hatches use new styled locking quick dogs and collet riser arms. The arms have a special holding vent posi-
tion so you can receive fresh air without the hatch being all the way opened. All have smoked floated acrylic lens and spigots that go
1-1/4" below the deck.
Hatch Hole O.D. of Corner
Hatch Each Opening Cut Out* Deck Flange Weight Radius Color
910-10B $246.45 9-3/16" x 9-3/16" 9-1/2" x 9-1/2" 11-1/2" x 11-1/2" 3-1/2 lbs. 1-1/4" Black
966-10B 323.95 16-5/16" x 16-5/16" 16-7/8" x 16-7/8" 18-7/8" x 18-7/8" 7-1/2 lbs. 1-11/16" Black
995-10B 457.95 19-1/4" x 19-1/4" 19-3/4" x 19-3/4" 21-7/8" x 21-7/8" 9-3/4 lbs. 1-11/16" Black
995-10W 457.95 19-1/4" x 19-1/4" 19-3/4" x 19-3/4" 21-7/8" x 21-7/8" 9-3/4 lbs. 1-11/16" White
*Cut out size includes trim ring 1/2" total clearance.

USE SILICONE SEALANTS ONLY — See Fig. 1402
Trim Rings and Screens are available on Special Order
