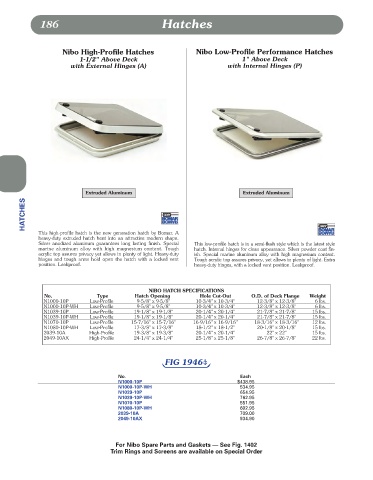

186 Hatches

Nibo High-Profile Hatches Nibo Low-Profile Performance Hatches
1-1/2" Above Deck 1" Above Deck
with External Hinges (A) with Internal Hinges (P)

Extruded Aluminum Extruded Aluminum
HATCHES

This high-profile hatch is the new generation hatch by Bomar. A
heavy-duty extruded hatch bent into an attractive modern shape.
Silver anodized aluminum guarantees long lasting finish. Special This low-profile hatch is in a semi-flush style which is the latest style
marine aluminum alloy with high magnesium content. Tough hatch. Internal hinges for clean appearance. Silver powder coat fin-
acrylic top assures privacy yet allows in plenty of light. Heavy-duty ish. Special marine aluminum alloy with high magnesium content.
hinges and tough arms hold open the hatch with a locked vent Tough acrylic top assures privacy, yet allows in plenty of light. Extra
position. Leakproof. heavy-duty hinges, with a locked vent position. Leakproof.

NIBO HATCH SPECIFICATIONS
No. Type Hatch Opening Hole Cut-Out O.D. of Deck Flange Weight
N1000-10P Low-Profile 9-5/8" x 9-5/8" 10-3/4" x 10-3/4" 12-3/8" x 12-3/8" 6 lbs.
N1000-10P-WH Low-Profile 9-5/8" x 9-5/8" 10-3/4" x 10-3/4" 12-3/8" x 12-3/8" 6 lbs.
N1039-10P Low-Profile 19-1/8" x 19-1/8" 20-1/4" x 20-1/4" 21-7/8" x 21-7/8" 15 lbs.
N1039-10P-WH Low-Profile 19-1/8" x 19-1/8" 20-1/4" x 20-1/4" 21-7/8" x 21-7/8" 15 lbs.
N1070-10P Low-Profile 15-7/16" x 15-7/16" 16-9/16" x 16-9/16" 18-3/16" x 18-3/16" 12 lbs.
N1080-10P-WH Low-Profile 17-3/8" x 17-3/8" 18-1/2" x 18-1/2" 20-1/8" x 20-1/8" 15 lbs.
2039-10A High-Profile 19-3/8" x 19-3/8" 20-1/4" x 20-1/4" 22" x 22" 15 lbs.
2049-10AX High-Profile 24-1/4" x 24-1/4" 25-1/8" x 25-1/8" 26-7/8" x 26-7/8" 22 lbs.

FIG 1946b

No. Each
N1000-10P $438.95
N1000-10P-WH 534.95
N1039-10P 654.95
N1039-10P-WH 762.95
N1070-10P 551.95
N1080-10P-WH 692.95
2039-10A 709.00
2049-10AX 934.90

For Nibo Spare Parts and Gaskets — See Fig. 1402
Trim Rings and Screens are available on Special Order
