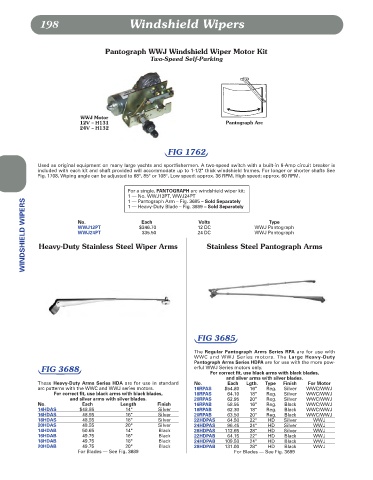

198 Windshield Wipers

Pantograph WWJ Windshield Wiper Motor Kit
Two-Speed Self-Parking

WWJ Motor
12V – H131 Pantograph Arc
24V – H132

FIG 1762

Used as original equipment on many large yachts and sportfishermen. A two-speed switch with a built-in 6-Amp circuit breaker is
included with each kit and shaft provided will accommodate up to 1-1/2" thick windshield frames. For longer or shorter shafts See
Fig. 1708. Wiping angle can be adjusted to 68°, 85° or 108°. Low speed: approx. 36 RPM, High speed: approx. 60 RPM.

For a single, PANTOGRAPH arc windshield wiper kit:
1 — No. WWJ12PT, WWJ24PT
WINDSHIELD WIPERS Heavy-Duty Stainless Steel Wiper Arms 12 DC WWJ Pantograph
1 — Pantograph Arm – Fig. 3685 – Sold Separately
1 — Heavy-Duty Blade – Fig. 3689 – Sold Separately
Volts
No.
Type
Each
WWJ12PT
$346.70
WWJ Pantograph
335.50
24 DC
WWJ24PT
Stainless Steel Pantograph Arms

FIG 3685

The Regular Pantograph Arms Series RPA are for use with
WWC and WWJ Series motors. The Large Heavy-Duty
Pantograph Arms Series HDPA are for use with the more pow-
FIG 3688 erful WWJ Series motors only.
For correct fit, use black arms with black blades,
and silver arms with silver blades.
These Heavy-Duty Arms Series HDA are for use in standard No. Each Lgth. Type Finish For Motor
arc patterns with the WWC and WWJ series motors. 16RPAS $54.80 16" Reg. Silver WWC/WWJ
For correct fit, use black arms with black blades, 18RPAS 64.10 18" Reg. Silver WWC/WWJ
and silver arms with silver blades. 20RPAS 62.95 20" Reg. Silver WWC/WWJ
No. Each Length Finish 16RPAB 58.55 16" Reg. Black WWC/WWJ
14HDAS $48.55 14" Silver 18RPAB 62.30 18" Reg. Black WWC/WWJ
16HDAS 48.55 16" Silver 20RPAB 63.50 20" Reg. Black WWC/WWJ
18HDAS 48.55 18" Silver 22HDPAS 64.50 22" HD Silver WWJ
20HDAS 48.55 20" Silver 24HDPAS 96.45 24" HD Silver WWJ
14HDAB 50.65 14" Black 28HDPAS 112.65 28" HD Silver WWJ
16HDAB 49.75 16" Black 22HDPAB 64.15 22" HD Black WWJ
18HDAB 49.75 18" Black 24HDPAB 109.50 24" HD Black WWJ
20HDAB 49.75 20" Black 28HDPAB 131.00 28" HD Black WWJ
For Blades — See Fig. 3689 For Blades — See Fig. 3689
