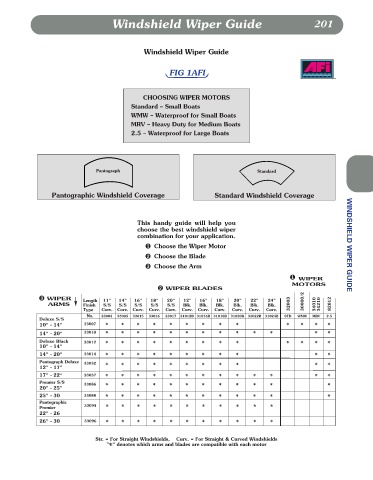

Windshield Wiper Guide 201

Windshield Wiper Guide

FIG 1AFI

CHOOSING WIPER MOTORS
Standard – Small Boats
WMW – Waterproof for Small Boats
MRV – Heavy Duty for Medium Boats
2.5 – Waterproof for Large Boats

Pantograph Standard

Pantographic Windshield Coverage Standard Windshield Coverage

This handy guide will help you
choose the best windshield wiper
combination for your application.
∂ Choose the Wiper Motor WINDSHIELD WIPER GUIDE
À Choose the Blade
à Choose the Arm

∂ WIPER
À WIPER BLADES MOTORS
à WIPER Length 11" 14" 16" 18" 20" 12" 16" 18" 20" 22" 24"
ARMS Finish S/S S/S S/S S/S S/S Blk. Blk. Blk. Blk. Blk. Blk. 32003 30000/2 34010 34210 82012
Type Curv. Curv. Curv. Curv. Curv. Curv. Curv. Curv. Curv. Curv. Curv.
No. 33004 33005 33015 33016 33017 31012B 31016B 31018B 31020B 31022B 31024B STD WMW MRV 2.5
Deluxe S/S
10" - 14" 33007 c c c c c c c c c c c c c
14" - 20" 33010 c c c c c c c c c c c c c
Deluxe Black 33012 c c c c c c c c c c c c c
10" - 14"
14" - 20" 33014 c c c c c c c c c c c
Pantograph Deluxe 33032 c c c c c c c c c c c
12" - 17"
17" - 22” 33037 c c c c c c c c c c c c c
Premier S/S
33086 c c c c c c c c c c c c
20" - 25"
25" - 30 33088 c c c c c c c c c c c c
Pantographic
33094 c c c c c c c c c c c
Premier
22" - 26
26" - 30 33096 c c c c c c c c c c c

Str. = For Straight Windshields, Curv. = For Straight & Curved Windshields
"c" denotes which arms and blades are compatible with each motor
