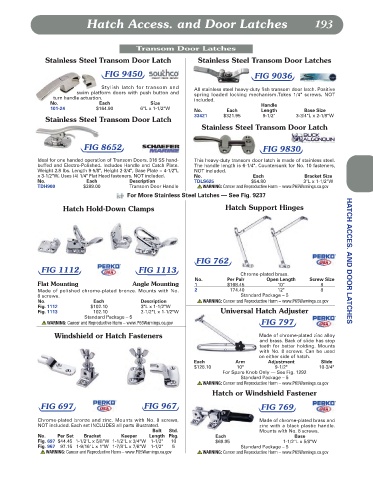

Hatch Access. and Door Latches 193

Transom Door Latches
Stainless Steel Transom Door Latch Stainless Steel Transom Door Latches

FIG 9450 FIG 9036

Stylish latch for transom and All stainless steel heavy-duty fish transom door latch. Positive
swim platform doors with push button and spring loaded locking mechanism.Takes 1/4" screws. NOT
turn handle actuation. included.
No. Each Size Handle
101-24 $164.90 6"L x 1-1/2"W No. Each Length Base Size
33421 $321.95 9-1/2" 3-3/4"L x 2-1/8"W
Stainless Steel Transom Door Latch
Stainless Steel Transom Door Latch

FIG 8652 FIG 9830

Ideal for one handed operation of Transom Doors. 316 SS hand- This heavy-duty transom door latch is made of stainless steel.
buffed and Electro-Polished. Includes Handle and Catch Plate. The handle length is 6-1/4". Countersunk for No. 10 fasteners,
Weight 2.8 lbs. Length 9-5/8", Height 2-3/4", Base Plate = 4-1/2"L NOT included.
x 3-1/2"W. Uses (4) 1/4" Flat Head fasteners. NOT included. No. Each Bracket Size
No. Each Description TDLS625 $54.80 3"L x 1-1/2"W
TDH900 $289.00 Transom Door Handle WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
For More Stainless Steel Latches — See Fig. 9237

Hatch Hold-Down Clamps Hatch Support Hinges

FIG 762 HATCH ACCES. AND DOOR LATCHES
FIG 1112 FIG 1113
Chrome-plated brass.
No. Per Pair Open Length Screw Size
Flat Mounting Angle Mounting 1 $168.45 10" 8
Made of polished chrome-plated bronze. Mounts with No. 2 174.40 12" 8
8 screws. Standard Package – 5
No. Each Description WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Fig. 1112 $102.10 3"L x 1-1/2"W
Fig. 1113 102.10 2-1/2"L x 1-1/2"W Universal Hatch Adjuster
Standard Package – 5
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov FIG 797
Windshield or Hatch Fasteners Made of chrome-plated zinc alloy
and brass. Back of slide has stop
teeth for better holding. Mounts
with No. 8 screws. Can be used
on either side of hatch.
Each Arm Adjustment Slide
$128.10 10" 9-1/2" 10-3/4"
For Spare Knob Only — See Fig. 1292
Standard Package – 5
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Hatch or Windshield Fastener

FIG 697 FIG 967 FIG 769

Chrome-plated bronze and zinc. Mounts with No. 8 screws, Made of chrome-plated brass and
NOT included. Each set INCLUDES all parts illustrated. zinc with a black plastic handle.
Bolt Std. Mounts with No. 8 screws.
No. Per Set Bracket Keeper Length Pkg. Each Base
Fig. 697 $44.45 1-1/2"L x 5/8"W 1-1/2"L x 3/4"W 1-1/2" 10 $69.95 1-1/2"L x 5/8"W
Fig. 967 97.15 1-9/16"L x 1"W 1-7/8"L x 7/8"W 1-1/2" 5 Standard Package – 5
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
