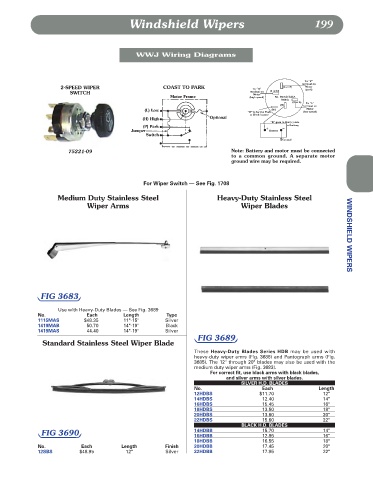

Windshield Wipers 199

WWJ Wiring Diagrams

2-SPEED WIPER COAST TO PARK
SWITCH

75221-09 Note: Battery and motor must be connected
to a common ground. A separate motor
ground wire may be required.

For Wiper Switch — See Fig. 1708

Medium Duty Stainless Steel Heavy-Duty Stainless Steel
Wiper Arms Wiper Blades WINDSHIELD WIPERS

FIG 3683

Use with Heavy-Duty Blades — See Fig. 3689
No. Each Length Type
1115MAS $48.35 11"-15" Silver
1419MAB 50.70 14"-19" Black
1419MAS 44.40 14"-19" Silver
FIG 3689
Standard Stainless Steel Wiper Blade
These Heavy-Duty Blades Series HDB may be used with
heavy-duty wiper arms (Fig. 3688) and Pantograph arms (Fig.
3685). The 12" through 20" blades may also be used with the
medium duty wiper arms (Fig. 3683).
For correct fit, use black arms with black blades,
and silver arms with silver blades.
SILVER H.D. BLADES
No. Each Length
12HDBS $11.70 12"
14HDBS 12.40 14"
16HDBS 15.45 16"
18HDBS 13.50 18"
20HDBS 13.60 20"
22HDBS 15.60 22"
BLACK H.D. BLADES
FIG 3690 14HDBB 15.70 14"
12.85
16"
16HDBB
18HDBB 16.55 18"
No. Each Length Finish 20HDBB 17.45 20"
12SBS $48.95 12" Silver 22HDBB 17.95 22"
