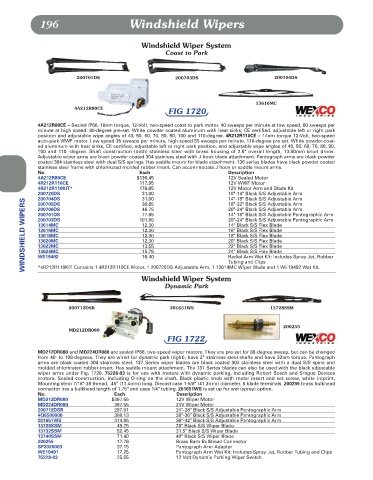

196 Windshield Wipers

Windshield Wiper System
Coast to Park

200701DS 200703DS 200704DS

13616MC
4A212R80CE
FIG 1720
4A212R80CE – Sealed IP66, 18nm torque, 12-Volt, two-speed coast to park motor. 40 sweeps per minute at low speed, 60 sweeps per
minute at high speed. 80-degree pre-set. White powder coated aluminum with heat sinks, CE certified, adjustable left or right park
position and adjustable wipe angles of 40, 50, 60, 70, 80, 90, 100 and 110-degree. 4R212R110CE – 14nm torque 12-Volt, two-speed
auto-park WWF motor. Low speed 35 sweeps per minute, high speed 55 sweeps per minute, 110-degree pre set. White powder-coat-
ed aluminum with heat sinks, CE certified, adjustable left or right park position, and adjustable wipe angles of 40, 50, 60, 70, 80, 90,
100 and 110 -degree. Shaft construction (both) stainless steel with brass housing of 2.5" overall length, 13.80mm knurl driver.
Adjustable wiper arms are black powder coated 304 stainless steel with J hook blade attachment. Pantograph arms are black powder
coated 304 stainless steel with dual S/S springs. Has saddle mount for blade attachment. 136 series blades have black powder coated
stainless steel frame with chlorinated molded rubber insert. Can accommodate J hook or saddle mount arms.
No. Each Description
4A212R80CE $136.45 12V Sealed Motor
4R212R110CE 117.95 12V WWF Motor
4R212R110KIT* 176.65 12V Motor Arm and Blade Kit
200720DS 31.00 10"-14" Black S/S Adjustable Arm
200704DS
31.00
14"-18" Black S/S Adjustable Arm
WINDSHIELD WIPERS 200701DS 101.85 14"-18" Black S/S Adjustable Pantographic Arm
18"-22" Black S/S Adjustable Arm
36.65
200705DS
46.75
20"-24" Black S/S Adjustable Arm
200706DS
77.65
200703DS
20"-24" Black S/S Adjustable Pantographic Arm
14" Black S/S Flex Blade
12.30
13614MC
16" Black S/S Flex Blade
13616MC
12.30
13618MC
12.30
18" Black S/S Flex Blade
20" Black S/S Flex Blade
13620MC
12.30
22" Black S/S Flex Blade
13.55
13622MC
15.75
13624MC
24" Black S/S Flex Blade
WE19492
Radial Arm Wet Kit: Includes Spray Jet, Rubber
16.40
Tubing and Clips
*4R212R110KIT Contains 1 4R212R110CE Motor, 1 200720DS Adjustable Arm, 1 13614MC Wiper Blade and 1 WE19492 Wet Kit.
Windshield Wiper System
Dynamic Park
200712DSR 201651WS 13728SSM
200255
MD212DR080
FIG 1722
MD212DR080 and MD224DR080 are sealed IP66, two-speed wiper motors. They are pre-set for 80-degree sweep, but can be changed
from 40- to 108-degrees. They are wired for dynamic park (right), have 2" stainless steel shafts and have 32nm torque. Pantograph
arms are black coated 304 stainless steel. 137 Series wiper blades are black coated 304 stainless steel with a dual S/S spine and
molded chlorinated rubber insert. Has saddle mount attachment. The 137 Series blades can also be used with the black adjustable
wiper arms under Fig. 1720. 75228-03 is for use with motors with dynamic parking, including Robert Bosch and Srague Devices
motors. Sealed construction, including O-ring on the shaft. Black plastic knob with metal insert and set screw, white imprint.
Mounting stem 7/16"-28 thread, .45" (11.4mm) long. Diecast case 1-5/8" (41.3mm) diameter. 6 blade terminals. 200255 brass bulkhead
connector has a bulkhead length of 1.75" and uses 1/4" tubing. 201651WS is set up for wet (spray) option.
No. Each Description
MD212DR080 $397.55 12V Wiper Motor
MD224DR080 397.55 24V Wiper Motor
200712DSR 287.81 24"-28" Black S/S Adjustable Pantographic Arm
4Q6500000 308.13 26"-36" Black S/S Adjustable Pantographic Arm
201651WS 314.95 36"-42" Black S/S Adjustable Pantographic Arm
13728SSM 49.25 28" Black S/S Wiper Blade
13732SSM 52.45 31.5" Black S/S Wiper Blade
13740SSM 71.40 40" Black S/S Wiper Blade
200255 17.76 Brass Barb Bulkhead Connector
SP2026003 37.15 Pantograph Arm Adapter
WE19491 17.25 Pantograph Arm Wet Kit: Includes Spray Jet, Rubber Tubing and Clips
75228-03 25.55 12 Volt Dynamic Parking Wiper Switch
