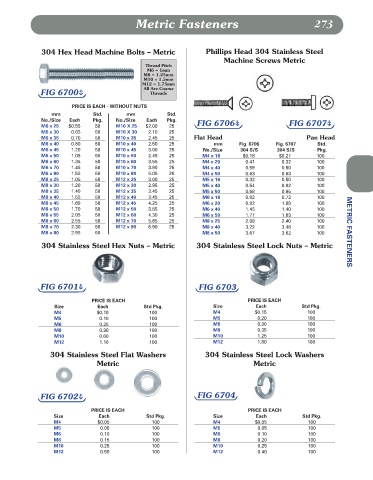

Metric Fasteners 273

304 Hex Head Machine Bolts – Metric Phillips Head 304 Stainless Steel
Machine Screws Metric
Thread Pitch
M6 = 1mm
M8 = 1.25mm
M10 = 1.5mm
M12 = 1.75mm
All Are Coarse
FIG 6700b Threads
PRICE IS EACH - WITHOUT NUTS
mm Std. mm Std.
No./Size Each Pkg. No./Size Each Pkg. FIG 6706b
M6 x 25 $0.55 50 M10 X 25 $2.00 25 FIG 6707b
M6 x 30 0.65 50 M10 X 30 2.10 25
M6 x 35 0.70 50 M10 x 35 2.45 25 Flat Head Pan Head
M6 x 40 0.80 50 M10 x 40 2.50 25 mm Fig. 6706 Fig. 6707 Std.
M6 x 45 1.20 50 M10 x 45 3.00 25 No./Size 304 S/S 304 S/S Pkg.
M6 x 50 1.05 50 M10 x 50 2.45 25 M4 x 16 $0.18 $0.27 100
M6 x 60 1.35 50 M10 x 60 3.55 25 M4 x 20 0.41 0.32 100
M6 x 70 1.45 50 M10 x 70 3.90 25 M4 x 40 0.59 0.50 100
M6 x 80 1.55 50 M10 x 80 5.05 25 M4 x 50 0.63 0.63 100
M8 x 25 1.05 50 M12 x 25 3.00 25 M5 x 16 0.32 0.50 100
M8 x 30 1.20 50 M12 x 30 2.95 25 M5 x 40 0.54 0.82 100
M8 x 35 1.40 50 M12 x 35 3.45 25 M5 x 50 0.68 0.95 100
M8 x 40 1.55 50 M12 x 40 3.45 25 M6 x 16 0.82 0.72 100
M8 x 45 1.69 50 M12 x 45 4.25 25 M6 x 20 0.82 1.09 100
M8 x 50 1.70 50 M12 x 50 3.85 25 M6 x 40 1.45 1.40 100
M8 x 55 2.05 50 M12 x 60 4.30 25 M6 x 50 1.77 1.63 100
M8 x 60 2.55 50 M12 x 70 5.65 25 M8 x 25 2.08 2.40 100
M8 x 70 2.30 50 M12 x 80 6.90 25 M8 x 40 3.22 3.48 100
M8 x 80 2.95 50 M8 x 50 3.67 3.62 100 METRIC FASTENERS
304 Stainless Steel Hex Nuts – Metric 304 Stainless Steel Lock Nuts – Metric

FIG 6701b FIG 6703

PRICE IS EACH PRICE IS EACH
Size Each Std Pkg. Size Each Std Pkg.
M4 $0.10 100 M4 $0.15 100
M5 0.10 100 M5 0.20 100
M6 0.25 100 M6 0.30 100
M8 0.30 100 M8 0.35 100
M10 0.60 100 M10 1.25 100
M12 1.10 100 M12 1.80 100
304 Stainless Steel Flat Washers 304 Stainless Steel Lock Washers
Metric Metric

FIG 6702b FIG 6704

PRICE IS EACH PRICE IS EACH
Size Each Std Pkg. Size Each Std Pkg.
M4 $0.05 100 M4 $0.05 100
M5 0.05 100 M5 0.05 100
M6 0.10 100 M6 0.10 100
M8 0.15 100 M8 0.20 100
M10 0.25 100 M10 0.25 100
M12 0.50 100 M12 0.40 100
