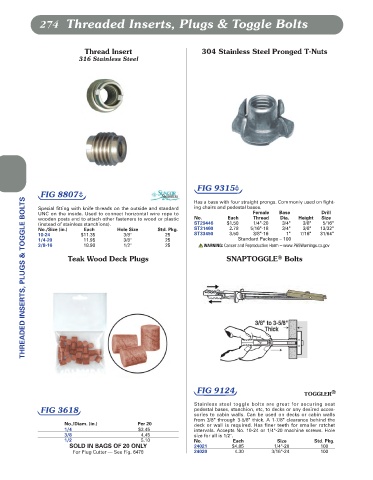

274 Threaded Inserts, Plugs & Toggle Bolts

Thread Insert 304 Stainless Steel Pronged T-Nuts
316 Stainless Steel

FIG 9315b
FIG 8807b
THREADED INSERTS, PLUGS & TOGGLE BOLTS
Has a base with four straight prongs. Commonly used on fight-
Special fitting with knife threads on the outside and standard ing chairs and pedestal bases.
UNC on the inside. Used to connect horizontal wire rope to Female Base Drill
wooden posts and to attach other fasteners to wood or plastic No. Each Thread Dia. Height Size
(instead of stainless stanchions). ST29446 $1.50 1/4"-20 3/4" 3/8" 5/16"
No./Size (in.) Each Hole Size Std. Pkg. ST31460 2.78 5/16"-18 3/4" 3/8" 13/32"
10-24 $11.35 3/8" 25 ST33450 3.50 3/8"-16 1" 7/16" 31/64"
1/4-20 11.95 3/8" 25 Standard Package – 100
3/8-16 18.90 1/2" 25 WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

®
Teak Wood Deck Plugs SNAPTOGGLE Bolts

FIG 9124 ®
TOGGLER
Stainless steel toggle bolts are great for securing seat
FIG 3618 pedestal bases, stanchion, etc, to decks or any desired ac ces-
sories to cabin walls. Can be used on decks or cabin walls
from 3/8" through 3-5/8" thick. A 1-7/8" clearance behind the
No./Diam. (in.) Per 20 deck or wall is required. Has finer teeth for smaller ratchet
1/4 $3.45 intervals. Accepts No. 10-24 or 1/4"-20 machine screws. Hole
3/8 4.45 size for all is 1/2".
1/2 5.10 No. Each Size Std. Pkg.
SOLD IN BAGS OF 20 ONLY 24021 $4.85 1/4"-20 100
For Plug Cutter — See Fig. 6478 24020 4.30 3/16"-24 100
