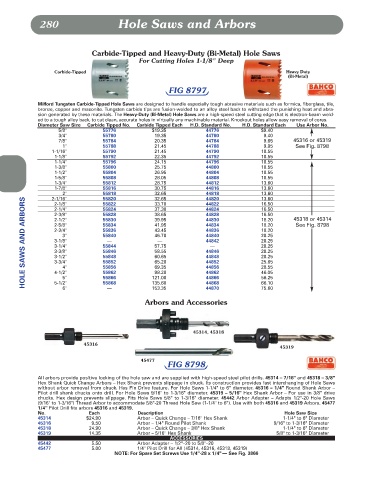

280 Hole Saws and Arbors

Carbide-Tipped and Heavy-Duty (Bi-Metal) Hole Saws
For Cutting Holes 1-1/8" Deep

Carbide-Tipped Heavy Duty
(Bi-Metal)
FIG 8797

Milford Tungsten Carbide-Tipped Hole Saws are designed to handle especially tough abrasive materials such as formica, fiberglass, tile,
bronze, copper and masonite. Tungsten carbide tips are fusion-welded to an alloy steel back to withstand the punishing heat and abra-
sion generated by these materials. The Heavy-Duty (Bi-Metal) Hole Saws are a high-speed steel cutting edge that is electron-beam weld-
ed to a tough alloy back, to cut clean, accurate holes in virtually any machinable material. Knockout holes allow easy removal of cores.
Diameter Saw Size Carbide Tipped No. Carbide Tipped Each H.D. Standard No. H.D. Standard Each Use Arbor No.
5/8" 55776 $19.35 44776 $9.40
3/4" 55780 19.35 44780 9.40
7/8" 55784 20.35 44784 9.65 45316 or 45319
1" 55788 21.45 44788 9.85 See Fig. 8798
1-1/16" 55790 21.45 44790 10.55
1-1/8" 55792 22.35 44792 10.55
1-1/4" 55796 24.15 44796 10.55
1-3/8" 55800 25.75 44800 10.55
1-1/2" 55804 26.95 44804 10.55
1-5/8" 55808 28.05 44808 10.55
1-3/4" 55812 28.75 44812 13.60
1-7/8" 55816 30.75 44816 13.60
2" 55818 32.65 44818 13.60
13.60
55820
HOLE SAWS AND ARBORS 2-1/2" 55830 39.95 44830 18.20 45318 or 45314
32.65
2-1/16"
44820
33.70
16.50
55822
44822
2-1/8"
55824
37.30
2-1/4"
16.50
44824
55828
44828
16.50
2-3/8"
38.65
See Fig. 8798
55834
44834
41.95
18.20
2-5/8"
44836
55836
2-3/4"
43.45
18.20
3"
55840
46.70
44840
20.25
44842
—
—
3-1/8"
20.25
55844
20.25
3-1/4"
57.75
—
3-3/8"
58.55
44846
20.25
55846
3-1/2"
20.25
44848
55848
60.65
65.20
44852
25.65
3-3/4"
55852
69.35
28.55
44856
4"
55856
44862
4-1/2"
98.20
55862
46.05
5"
121.00
55866
44866
66.10
5-1/2"
44868
135.60
55868
153.35
75.60
44870
6"
—
Arbors and Accessories 56.25
45314, 45318
45316
45319
45477
FIG 8798
All arbors provide positive locking of the hole saw and are supplied with high-speed steel pilot drills. 45314 – 7/16" and 45318 – 3/8"
Hex Shank Quick Change Arbors – Hex Shank prevents slippage in chuck. Its construction provides fast interchanging of Hole Saws
without arbor removal from chuck. Has Pin Drive feature. For Hole Saws 1-1/4" to 6" diameter. 45316 – 1/4" Round Shank Arbor –
Pilot drill shank chucks onto drill. For Hole Saws 9/16" to 1-3/16" diameter. 45319 – 5/16" Hex Shank Arbor – For use in 3/8" drive
chucks. Hex design prevents slippage. Fits Hole Saws 5/8" to 1-3/16" diameter. 45442 Arbor Adapter – Adapts 1/2"-20 Hole Saws
(9/16" to 1-3/16") Thread Arbor to accommodate 5/8"-20 Thread Hole Saw (1-1/4" to 6"). Use with both 45316 and 45319 Arbors. 45477
1/4" Pilot Drill fits arbors 45316 and 45319.
No. Each Description Hole Saw Size
45314 $24.90 Arbor – Quick Change – 7/16" Hex Shank 1-1/4" to 6" Diameter
45316 9.50 Arbor – 1/4" Round Pilot Shank 9/16" to 1-3/16" Diameter
45318 24.90 Arbor – Quick Change – 3/8" Hex Shank 1-1/4" to 6" Diameter
45319 14.35 Arbor – 5/16" Hex Shank 5/8" to 1-3/16" Diameter
ACCESSORIES
45442 5.50 Arbor Adapter – 1/2"–20 to 5/8"–20
45477 5.00 1/4" Pilot Drill for All (45314, 45316, 45318, 45319)
NOTE: For Spare Set Screws Use 1/4"-28 x 1/4" — See Fig. 3866
