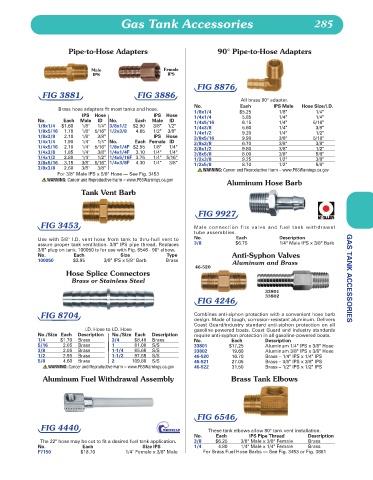

Page 286 - Lewis

Gas Tank Accessories 285

Pipe-to-Hose Adapters 90° Pipe-to-Hose Adapters

Male Female
IPS IPS

FIG 8876
FIG 3881 FIG 3886
All brass 90° adapter.
No. Each IPS Male Hose Size/I.D.
Brass hose adapters fit most tanks and hose.
1/8x1/4 $5.25 1/8" 1/4"
IPS Hose IPS Hose 1/4x1/4 5.85 1/4" 1/4"
No. Each Male ID No. Each Male ID 1/4x5/16 6.15 1/4" 5/16"
1/8x1/4 $1.60 1/8" 1/4" 3/8x1/2 $2.90 3/8" 1/2" 1/4x3/8 5.60 1/4" 3/8"
1/8x5/16 1.70 1/8" 5/16" 1/2x3/8 4.65 1/2" 3/8" 1/4x1/2 9.20 1/4" 1/2"
1/8x3/8 2.10 1/8" 3/8" IPS Hose 3/8x5/16 9.90 3/8" 5/16"
1/4x1/4 1.90 1/4" 1/4" No. Each Female ID 3/8x3/8 6.70 3/8" 3/8"
1/4x5/16 2.10 1/4" 5/16" 1/8x1/4F $2.55 1/8" 1/4" 3/8x1/2 9.80 3/8" 1/2"
1/4x3/8 1.85 1/4" 3/8" 1/4x1/4F 3.10 1/4" 1/4"
3/8x5/8 8.00 3/8" 5/8"
1/4x1/2 2.80 1/4" 1/2" 1/4x5/16F 3.75 1/4" 5/16" 1/2x3/8 9.25 1/2" 3/8"
3/8x5/16 3.15 3/8" 5/16" 1/4x3/8F 4.30 1/4" 3/8" 1/2x5/8 8.70 1/2" 5/8"
3/8x3/8 2.60 3/8" 3/8"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
For 3/8" Male IPS x 5/8" Hose — See Fig. 3453
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Aluminum Hose Barb
Tank Vent Barb

FIG 9927

FIG 3453 Male connection fits valve and fuel tank withdrawal
tube assemblies.
Use with 5/8" I.D. vent hose from tank to thru-hull vent to No. Each Description
assure proper tank ventilation. 3/8" IPS pipe thread. Replaces 3/8 $6.75 1/4" Male IPS x 3/8" Barb
3/8" plug on tank. 100050 is for use with Fig. 6546 - 90° elbow.
No. Each Size Type Anti-Syphon Valves
100050 $3.95 3/8" IPS x 5/8" Barb Brass
Aluminum and Brass
46-520
Hose Splice Connectors
Brass or Stainless Steel GAS TANK ACCESSORIES
33801
33802
FIG 4246

FIG 8704 Combines anti-siphon protection with a convenient hose barb
design. Made of tough, corrosion-resistant aluminum. Delivers
Coast Guard/industry standard anti-siphon protection on all
I.D. Hose to I.D. Hose gasoline-powered boats. Coast Guard and industry standards
No./Size Each Description No./Size Each Description require anti-syphon protection in all gasoline-powered boats.
1/4 $1.70 Brass 3/4 $8.40 Brass No. Each Description
5/16 2.05 Brass 1 81.00 S/S 33801 $17.25 Aluminum 1/4" IPS x 3/8" Hose
3/8 2.05 Brass 1-1/4 85.65 S/S 33802 19.60 Aluminum 3/8" IPS x 3/8" Hose
1/2 2.95 Brass 1-1/2 97.55 S/S 46-520 16.70 Brass – 1/4" IPS x 1/4" IPS
5/8 4.60 Brass 2 109.80 S/S 46-521 27.05 Brass – 3/8" IPS x 3/8" IPS
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 46-522 31.50 Brass – 1/2" IPS x 1/2" IPS
Aluminum Fuel Withdrawal Assembly Brass Tank Elbows

FIG 6546

FIG 4440 These tank elbows allow 90° tank vent installation.
No. Each IPS Pipe Thread Description
The 22" hose may be cut to fit a desired fuel tank application. 3/8 $6.25 3/8" Male x 3/8" Female Brass
No. Each Size IPS 1/4 4.80 1/4" Male x 1/4" Female Brass
F7150 $18.70 1/4" Female x 3/8" Male For Brass Fuel Hose Barbs — See Fig. 3453 or Fig. 3881
