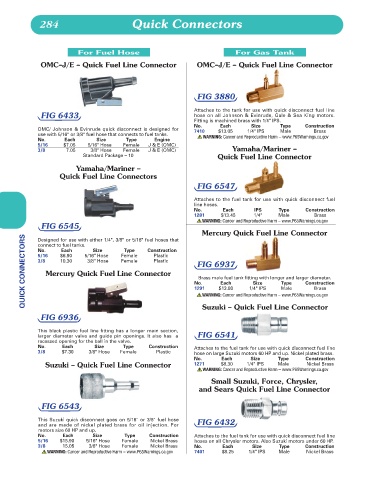

284 Quick Connectors

For Fuel Hose For Gas Tank
OMC–J/E – Quick Fuel Line Connector OMC–J/E – Quick Fuel Line Connector

FIG 3880

Attaches to the tank for use with quick disconnect fuel line
FIG 6433 hose on all Johnson & Evinrude, Gale & Sea King motors.
Fitting is machined brass with 1/4" IPS.
No. Each Size Type Construction
OMC/ Johnson & Evinrude quick disconnect is designed for 7410 $13.05 1/4" IPS Male Brass
use with 5/16" or 3/8" fuel hose that connects to fuel tanks.
No. Each Size Type Engine WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
5/16 $7.05 5/16" Hose Female J & E (OMC)
3/8 7.05 3/8" Hose Female J & E (OMC) Yamaha/Mariner –
Standard Package – 10 Quick Fuel Line Connector

Yamaha/Mariner –
Quick Fuel Line Connectors
FIG 6547

Attaches to the fuel tank for use with quick disconnect fuel
line hoses.
No. Each IPS Type Construction
1281 $13.45 1/4" Male Brass
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
FIG 6545
Mercury Quick Fuel Line Connector
QUICK CONNECTORS 5/16 Mercury Quick Fuel Line Connector No. $13.80 1/4" IPS Type Construction
Designed for use with either 1/4", 3/8" or 5/16" fuel hoses that
connect to fuel tanks.
Size
Each
No.
Construction
Type
$6.90
5/16" Hose
Plastic
Female
Female
10.30
Plastic
3/8
3/8" Hose
FIG 6937
Brass male fuel tank fitting with longer and larger diameter.
Size
Each
1291
Male
Brass
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
FIG 6936 Suzuki – Quick Fuel Line Connector
This black plastic fuel line fitting has a longer main section,
larger diameter valve and guide pin openings. It also has a FIG 6541
recessed opening for the ball in the valve.
No. Each Size Type Construction Attaches to the fuel tank for use with quick disconnect fuel line
3/8 $7.30 3/8" Hose Female Plastic hose on large Suzuki motors 60 HP and up. Nickel plated brass.
No. Each Size Type Construction
Suzuki – Quick Fuel Line Connector 1271 $8.30 1/4" IPS Male Nickel Brass
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Small Suzuki, Force, Chrysler,
and Sears Quick Fuel Line Connector
FIG 6543
This Suzuki quick disconnect goes on 5/16" or 3/8" fuel hose FIG 6432
and are made of nickel plated brass for oil injection. For
motors size 60 HP and up.
No. Each Size Type Construction Attaches to the fuel tank for use with quick disconnect fuel line
5/16 $15.90 5/16" Hose Female Nickel Brass hoses on all Chrysler motors. Also Suzuki motors under 60 HP.
3/8 15.05 3/8" Hose Female Nickel Brass No. Each Size Type Construction
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 7401 $8.25 1/4" IPS Male Nickel Brass
