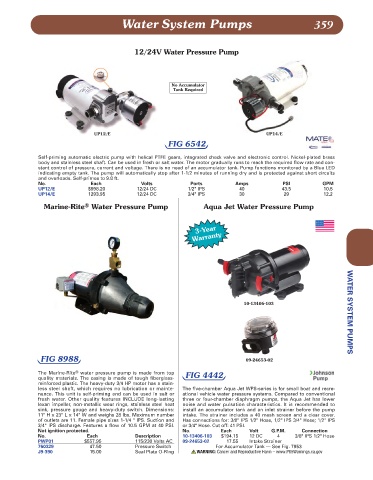

Water System Pumps 359

12/24V Water Pressure Pump

No Accumulator
Tank Required

UP12/E UP14/E
FIG 6542

Self-priming automatic electric pump with helical PTFE gears, integrated check valve and electronic control. Nickel-plated brass
body and stainless steel shaft. Can be used in fresh or salt water. The motor gradually runs to reach the required flow rate and con-
stant control of pressure, current and voltage. There is no need of an accumulator tank. Pump functions monitored by a Blue LED
indicating empty tank. The pump will automatically stop after 1-1/2 minutes of running dry and is protected against short circuits
and overloads. Self-primes to 9.8 ft.
No. Each Volts Ports Amps PSI GPM
UP12/E $998.20 12/24 DC 1/2" IPS 40 43.5 10.5
UP14/E 1293.95 12/24 DC 3/4" IPS 30 29 12.2

®
Marine-Rite Water Pressure Pump Aqua Jet Water Pressure Pump

3-Year
Warranty

10-13406-103 WATER SYSTEM PUMPS

FIG 8988 09-24653-02

The Marine-Rite ® water pressure pump is made from top FIG 4442
quality materials. The casing is made of tough fiberglass-
reinforced plastic. The heavy-duty 3/4 HP motor has a stain-
less steel shaft, which requires no lubrication or mainte- The five-chamber Aqua Jet WPS-series is for small boat and recre-
nance. This unit is self-priming and can be used in salt or ational vehicle water pressure systems. Compared to conventional
fresh water. Other quality features INCLUDE long-lasting three or four-chamber diaphragm pumps, the Aqua Jet has lower
lexan impeller, non-metallic wear rings, stainless steel heat noise and water pulsation characteristics. It is recommended to
sink, pressure gauge and heavy-duty switch. Dimensions: install an accumulator tank and an inlet strainer before the pump
11" H x 23" L x 14" W and weighs 28 lbs. Maximum number intake. The strainer includes a 40 mesh screen and a clear cover.
of outlets are 11. Female pipe sizes 1-1/4 " IPS. Suction and Has connections for: 3/8" IPS 1/2" Hose, 1/2" IPS 3/4" Hose; 1/2" IPS
3/4" IPS discharge. Features a flow of 10.5 GPM at 40 PSI. or 3/4" Hose. Cut off: 41 PSI.
Not ignition protected. No. Each Volt G.P.M. Connection
No. Each Description 10-13406-103 $194.15 12 DC 4 3/8" IPS 1/2" Hose
PWP01 $557.95 115/230 Volts AC 09-24653-02 17.55 Intake Strainer
760329 47.50 Pressure Switch For Accumulator Tank — See Fig. 7953
J9-390 15.00 Seal Plate O-Ring WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
