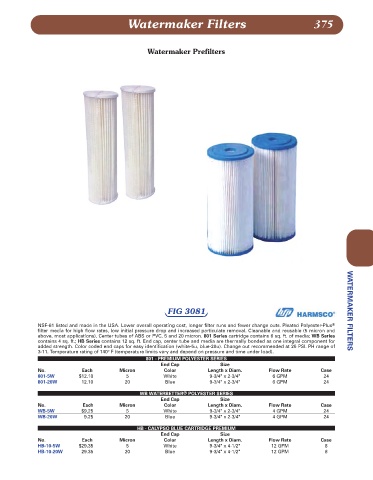

Page 376 - Lewis

Watermaker Filters 375

Watermaker Prefilters

FIG 3081 WATERMAKER FILTERS

NSF-61 listed and made in the USA. Lower overall operating cost, longer filter runs and fewer change outs. Pleated Polyester-Plus ®
filter media for high flow rates, low initial pressure drop and increased particulate removal. Cleanable and reusable (5 micron and
above, most applications). Center tubes of ABS or PVC, 5 and 20 micron. 801 Series cartridge contains 6 sq. ft. of media; WB Series
contains 4 sq. ft.; HB Series contains 12 sq. ft. End cap, center tube and media are thermally bonded as one integral component for
added strength. Color coded end caps for easy identification (white-5u, blue-20u). Change out recommended at 25 PSI. PH range of
3-11. Temperature rating of 140° F (temperature limits vary and depend on pressure and time under load).
801 - PREMIUM POLYESTER SERIES
End Cap Size
No. Each Micron Color Length x Diam. Flow Rate Case
801-5W $12.10 5 White 9-3/4" x 2-3/4" 6 GPM 24
801-20W 12.10 20 Blue 9-3/4" x 2-3/4" 6 GPM 24

WB WATERBETTER® POLYESTER SERIES
End Cap Size
No. Each Micron Color Length x Diam. Flow Rate Case
WB-5W $9.25 5 White 9-3/4" x 2-3/4" 4 GPM 24
WB-20W 9.25 20 Blue 9-3/4" x 2-3/4" 4 GPM 24
HB - CALYPSO BLUE CARTRIDGE PREMIUM
End Cap Size
No. Each Micron Color Length x Diam. Flow Rate Case
HB-10-5W $29.35 5 White 9-3/4" x 4-1/2" 12 GPM 8
HB-10-20W 29.35 20 Blue 9-3/4" x 4-1/2" 12 GPM 8
