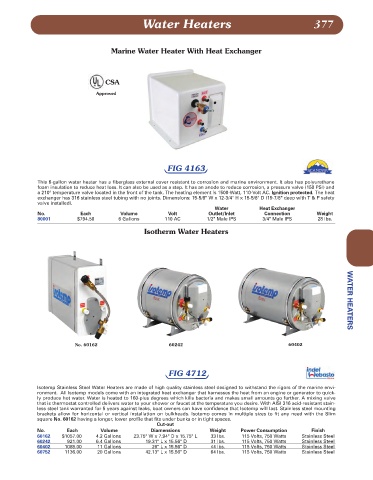

Page 378 - Lewis

Water Heaters 377

Marine Water Heater With Heat Exchanger

CSA
Approved

FIG 4163

This 6-gallon water heater has a fiberglass external cover resistant to corrosion and marine environment. It also has polyurethane
foam insulation to reduce heat loss. It can also be used as a step. It has an anode to reduce corrosion, a pressure valve (150 PSI) and
a 210° temperature valve located in the front of the tank. The heating element is 1500-Watt, 110-Volt AC. Ignition protected. The heat
exchanger has 316 stainless steel tubing with no joints. Dimensions: 15-5/8" W x 12-3/4" H x 15-5/8" D (19-7/8" deep with T & P safety
valve installed).
Water Heat Exchanger
No. Each Volume Volt Outlet/Inlet Connection Weight
80001 $794.50 6 Gallons 110 AC 1/2" Male IPS 3/4" Male IPS 28 lbs.
Isotherm Water Heaters

No. 60162 60242 60402 WATER HEATERS

FIG 4712

Isotemp Stainless Steel Water Heaters are made of high quality stainless steel designed to withstand the rigors of the marine envi-
ronment. All Isotemp models come with an integrated heat exchanger that harnesses the heat from an engine or generator to quick-
ly produce hot water. Water is heated to 160-plus degrees which kills bacteria and makes small amounts go further. A mixing valve
that is thermostat controlled delivers water to your shower or faucet at the temperature you desire. With AISI 316 acid-resistant stain-
less steel tank warranted for 5 years against leaks, boat owners can have confidence that Isotemp will last. Stainless steel mounting
brackets allow for horizontal or vertical installation on bulkheads. Isotemp comes in multiple sizes to fit any need with the Slim
square No. 60162 having a longer, lower profile that fits under bunks or in tight spaces.
Cut-out
No. Each Volume Diamensions Weight Power Consumption Finish
60162 $1057.00 4.2 Gallons 23.75" W x 7.94" D x 15.75" L 33 lbs. 115 Volts, 750 Watts Stainless Steel
60242 921.00 6.4 Gallons 19.31" L x 15.56" D 31 lbs. 115 Volts, 750 Watts Stainless Steel
60402 1088.00 11 Gallons 26" L x 15.56" D 44 lbs. 115 Volts, 750 Watts Stainless Steel
60752 1136.00 20 Gallons 42.13" L x 15.56" D 64 lbs. 115 Volts, 750 Watts Stainless Steel
