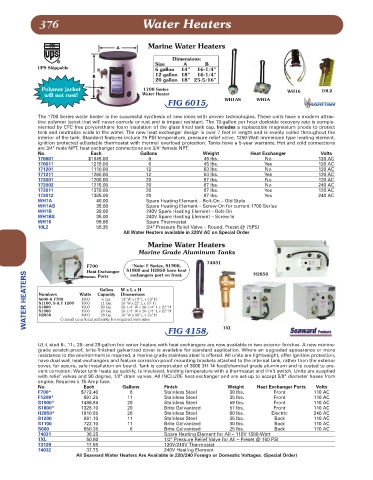

376 Water Heaters

Marine Water Heaters

Dimensions:
Size A B
UPS Shippable 6 gallon 14" 16-1/4"
12 gallon 18" 16-1/4"
20 gallon 18" 25-5/16"
Polymer jacket 1700 Series WH16 10L2
will not rust! Water Heater
WH1AS WH1A
FIG 6015
The 1700 Series water heater is the successful synthesis of new ideas with proven technologies. These units have a modern attrac-
tive polymer jacket that will never corrode or rust and is impact resistant. The 13-gallon per hour dockside recovery rate is comple-
mented by CFC free polyurethane foam insulation of the glass lined tank cap. Includes a replaceable magnesium anode to protect
tank and neutralize acids in the water. The new heat exchanger design is over 7 feet in length and is evenly coiled throughout the
interior of the tank. Standard features include 75 PSI temperature, pressure relief valve, 1250-Watt immersion type heating element,
ignition protected adjustable thermostat with thermal overload protection. Tanks have a 5-year warranty. Hot and cold connections
are 3/4" male NPT, heat exchanger connections are 3/4" female NPT.
No. Each Gallons Weight Heat Exchanger Volts
170601 $1045.00 6 45 lbs. No 120 AC
170611 1215.00 6 45 lbs. Yes 120 AC
171201 1110.00 12 63 lbs. No 120 AC
171211 1280.00 12 63 lbs. Yes 120 AC
172001 1200.00 20 87 lbs. No 120 AC
172002 1215.00 20 87 lbs. No 240 AC
172011 1370.00 20 87 lbs. Yes 120 AC
172012 1385.00 20 87 lbs. Yes 240 AC
WH1A 40.00 Spare Heating Element – Bolt-On – Old Style
WH1AS 35.00 Spare Heating Element – Screw-On for current 1700 Series
WH1B 39.00 240V Spare Heating Element – Bolt-On
WH1BS 35.00 240V Spare Heating Element – Screw In
WH16 99.98 Spare Thermostat
10L2 58.35 3/4" Pressure Relief Valve – Round, Preset @ 75PSI
All Water Heaters available in 220V AC on Special Order
Marine Water Heaters
Marine Grade Aluminum Tanks
74031
*Note: F Series, S1900,
F700 Ports S1800 and H2850 have heat H2850
Heat Exchanger
WATER HEATERS S1100, S & F 1200 Watts Capacity W x L x H
exchangers port on front.
Gallon
Dimensions
Numbers
1500
6 Gal.
13" W x 19" L x 13" H
S600 & F700
1500
11 Gal.
16" W x 22" L x 16" H
1500
20-1/4" W x 20-1/4" L x 27" H
20 Gal.
S1800
1500
20-1/4" W x 20-1/4" L x 27" H
20 Gal.
S1900
16" W x 40" L x 16" H
28 Gal.
3000
H2850
Consult your local authority for required wire sizes
FIG 4158 1XL
UL-Listed 6-, 11-, 20- and 28-gallon hot water heaters with heat exchangers are now available in two exterior finishes. A new marine-
grade scratch-proof, brite-finished galvanized cover is available for standard application. Where an upgraded appearance or more
resistance to the environment is required, a marine-grade stainless steel is offered. All units are lightweight, offer ignition protection,
have dual wall heat-exchangers and feature corrosion-proof mounting brackets attached to the internal tank, rather than the exterior
cover, for secure, safe installation on board. Tank is constructed of 3000 3H-14 food/chemical grade aluminum and is coated to pre-
vent corrosion. Water tank heats up quickly, is insulated, holding temperature with a thermostat and limit switch. Units are supplied
with relief valves and 90 degree, 1/2" drain valves. All INCLUDE heat-exchanger and are set-up to accept 5/8" diameter hoses from
engine. Requires a 15-Amp fuse.
No. Each Gallons Finish Weight Heat Exchanger Ports Volts
F700* $772.40 6 Stainless Steel 30 lbs. Front 110 AC
F1200* 897.25 11 Stainless Steel 35 lbs. Front 110 AC
S1900* 1486.85 20 Stainless Steel 59 lbs. Front 110 AC
S1800* 1328.70 20 Brite Galvanized 57 lbs. Front 110 AC
H2850* 1910.85 28 Stainless Steel 60 lbs. Electric 240 AC
S1200 861.10 11 Stainless Steel 35 lbs. Back 110 AC
S1100 722.10 11 Brite Galvanized 30 lbs. Back 110 AC
S600 650.35 6 Brite Galvanized 25 lbs. Back 110 AC
74031 36.25 Spare Heating Element for All – 110V 1500-Watt
1XL 50.80 1/2" Pressure Relief Valve for All – Preset @ 150 PSI
73129 17.95 120V/240V Thermostat
74032 37.75 240V Heating Element
All Seaward Water Heaters Are Available in 220/240 Foreign or Domestic Voltages. (Special Order)
