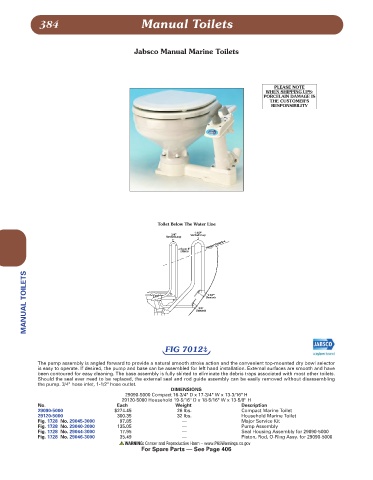

384 Manual Toilets

Jabsco Manual Marine Toilets

PLEASE NOTE
WHEN SHIPPING UPS:
PORCELAIN DAMAGE IS
THE CUSTOMER'S
RESPONSIBILITY

Toilet Below The Water Line

MANUAL TOILETS

FIG 7012b

The pump assembly is angled forward to provide a natural smooth stroke action and the convenient top-mounted dry bowl selector
is easy to operate. If desired, the pump and base can be assembled for left hand installation. External surfaces are smooth and have
been contoured for easy cleaning. The base assembly is fully skirted to eliminate the debris traps associated with most other toilets.
Should the seal ever need to be replaced, the external seal and rod guide assembly can be easily removed without disassembling
the pump. 3/4" hose inlet, 1-1/2" hose outlet.
DIMENSIONS
29090-5000 Compact 16-3/4" D x 17-3/4" W x 13-3/16" H
29120-5000 Household 19-5/16" D x 18-5/16" W x 13-5/8" H
No. Each Weight Description
29090-5000 $274.45 26 lbs. Compact Marine Toilet
29120-5000 300.35 32 lbs. Household Marine Toilet
Fig. 1728 No. 29045-3000 97.85 — Major Service Kit
Fig. 1728 No. 29040-3000 135.05 — Pump Assembly
Fig. 1728 No. 29044-3000 17.95 — Seal Housing Assembly for 29090-5000
Fig. 1728 No. 29046-3000 35.49 — Piston, Rod, O-Ring Assy. for 29090-5000
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
For Spare Parts — See Page 406
