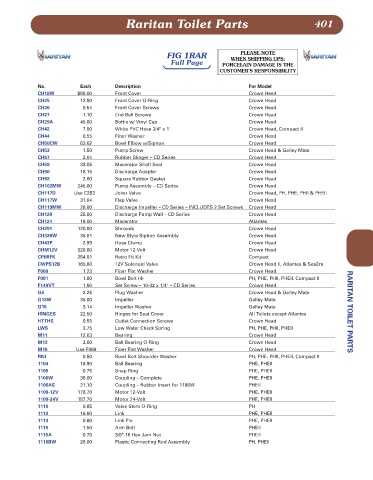

Page 402 - Lewis

Raritan Toilet Parts 401

PLEASE NOTE
FIG 1RAR WHEN SHIPPING UPS:
Full Page PORCELAIN DAMAGE IS THE
CUSTOMER'S RESPONSIBILITY

No. Each Description For Model
CH18W $50.00 Front Cover Crown Head
CH25 12.50 Front Cover O-Ring Crown Head
CH26 0.54 Front Cover Screws Crown Head
CH27 1.10 End Bell Screws Crown Head
CH29A 45.00 Bottle w/ Vinyl Cap Crown Head
CH42 7.00 White PVC Hose 3/4" x 1' Crown Head, Compact II
CH44 0.55 Fiber Washer Crown Head
CH50CW 63.62 Bowl Elbow w/Siphon Crown Head
CH53 1.50 Pump Screw Crown Head & Galley Mate
CH57 2.04 Rubber Slinger – CD Series Crown Head
CH59 33.05 Macerator Shaft Seal Crown Head
CH90 18.15 Discharge Adapter Crown Head
CH92 2.60 Square Rubber Gasket Crown Head
CH102MW 245.00 Pump Assembly – CD Series Crown Head
CH117D Use C253 Joker Valve Crown Head, PH, PHE, PHII & PHEII
CH117W 31.04 Flap Valve Crown Head
CH119MW 28.00 Discharge Impeller – CD Series – INCLUDES 2 Set Screws Crown Head
CH120 25.00 Discharge Pump Wall – CD Series Crown Head
CH121 19.00 Macerator Atlantes
CH291 120.00 Shrouds Crown Head
CH336W 35.81 New Style Siphon Assembly Crown Head
CH43P 2.99 Hose Clamp Crown Head
CHM12V 320.00 Motor 12-Volt Crown Head
CPIIRFK 254.01 Retro Fit Kit Compact
CWPS12B 165.00 12V Solenoid Valve Crown Head II, Atlantes & SeaEra
F069 1.23 Fiber Flat Washer Crown Head
F081 1.00 Bowl Bolt (4) PH, PHE, PHII, PHEII, Compact II
F149VT 1.50 Set Screw – 10-32 x 1/4" – CD Series Crown Head
G4 2.25 Plug Washer Crown Head & Galley Mate
G13W 35.00 Impeller Galley Mate
G15 3.14 Impeller Washer Galley Mate
HINGES 22.50 Hinges for Seat Cover All Toilets except Atlantes RARITAN TOILET PARTS
HTTHS 0.55 Outlet Connection Screws Crown Head
LWS 3.75 Low Water Check Spring PH, PHE, PHII, PHEII
M11 12.63 Bearing Crown Head
M13 2.00 Ball Bearing O-Ring Crown Head
M15 Use F069 Fiber Flat Washer Crown Head
RNI 0.50 Bowl Bolt Shoulder Washer PH, PHE, PHII, PHEII, Compact II
1104 16.90 Ball Bearing PHE, PHEII
1105 0.75 Snap Ring PHE, PHEII
1106W 38.00 Coupling – Complete PHE, PHEII
1106AS 21.10 Coupling – Rubber Insert for 1106W PHEII
1109-12V 178.70 Motor 12-Volt PHE, PHEII
1109-24V 187.70 Motor 24-Volt PHE, PHEII
1110 0.85 Valve Stem O-Ring PH
1112 16.50 Link PHE, PHEII
1113 0.60 Link Pin PHE, PHEII
1115 1.50 Arm Bolt PHEII
1115A 0.70 3/8"-16 Hex Jam Nut PHEII
1116BW 28.00 Plastic Connecting Rod Assembly PH, PHEII
