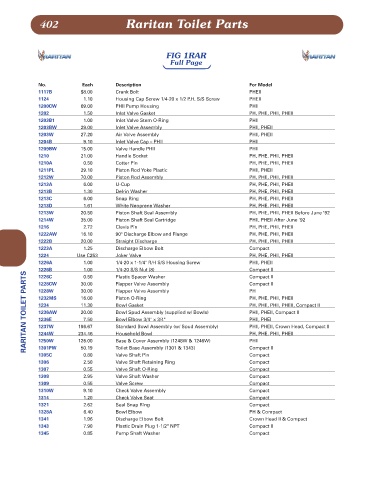

402 Raritan Toilet Parts

FIG 1RAR
Full Page

No. Each Description For Model
1117B $8.00 Crank Bolt PHEII
1124 1.10 Housing Cap Screw 1/4-20 x 1/2 P.H. S/S Screw PHEII
1200CW 69.00 PHII Pump Housing PHII
1202 1.50 Inlet Valve Gasket PH, PHE, PHII, PHEII
1203B1 1.00 Inlet Valve Stem O-Ring PHII
1203BW 29.00 Inlet Valve Assembly PHII, PHEII
1203W 27.20 Air Valve Assembly PHII, PHEII
1204B 9.10 Inlet Valve Cap – PHII PHII
1209BW 15.00 Valve Handle PHII PHII
1210 21.00 Handle Socket PH, PHE, PHII, PHEII
1210A 0.50 Cotter Pin PH, PHE, PHII, PHEII
1211PL 29.10 Piston Rod Yoke Plastic PHII, PHEII
1212W 70.00 Piston Rod Assembly PH, PHE, PHII, PHEII
1213A 6.00 U-Cup PH, PHE, PHII, PHEII
1213B 1.30 Delrin Washer PH, PHE, PHII, PHEII
1213C 6.00 Snap Ring PH, PHE, PHII, PHEII
1213D 1.61 White Neoprene Washer PH, PHE, PHII, PHEII
1213W 20.50 Piston Shaft Seal Assembly PH, PHE, PHII, PHEII Before June '92
1214W 35.00 Piston Shaft Seal Cartridge PHII, PHEII After June '92
1216 2.72 Clevis Pin PH, PHE, PHII, PHEII
1222AW 16.10 90° Discharge Elbow and Flange PH, PHE, PHII, PHEII
1222B 20.00 Straight Discharge PH, PHE, PHII, PHEII
1223A 1.25 Discharge Elbow Bolt Compact
1224 Use C253 Joker Valve PH, PHE, PHII, PHEII
1226A 1.00 1/4-20 x 1-1/4" R/H S/S Housing Screw PHII, PHEII
1.00
1226B 30.00 1/4-20 S/S Nut (8) Compact II
RARITAN TOILET PARTS 1228W 196.67 Flapper Valve Assembly PH
0.50
1226C
Plastic Spacer Washer
Compact II
Compact II
Flapper Valve Assembly
1228CW
30.00
PH, PHE, PHII, PHEII
16.00
1232MS
Piston O-Ring
PH, PHE, PHII, PHEII, Compact II
11.30
Bowl Gasket
1234
1236AW
Bowl Spud Assembly (supplied w/ Bowls)
20.00
PHII, PHEII, Compact II
7.50
Bowl Elbow 3/4" x 3/4"
PHII, PHEI
1236E
1237W
Standard Bowl Assembly (w/ Spud Assembly)
PHII, PHEII, Crown Head, Compact II
PH, PHE, PHII, PHEII
1244W
Household Bowl
234.46
1250W
Toilet Base Assembly (1301 & 1343)
1301PW
50.19
Compact II
1305C 126.00 Base & Cover Assembly (1248W & 1246W) PHII
Valve Shaft Pin
Compact
0.80
1306 2.50 Valve Shaft Retaining Ring Compact
1307 0.55 Valve Shaft O-Ring Compact
1308 2.95 Valve Shaft Washer Compact
1309 0.55 Valve Screw Compact
1310W 9.10 Check Valve Assembly Compact
1314 1.20 Check Valve Seat Compact
1321 2.62 Seal Snap Ring Compact
1328A 6.40 Bowl Elbow PH & Compact
1341 1.96 Discharge Elbow Bolt Crown Head II & Compact
1343 7.90 Plastic Drain Plug 1-1/2" NPT Compact II
1345 0.85 Pump Shaft Washer Compact
