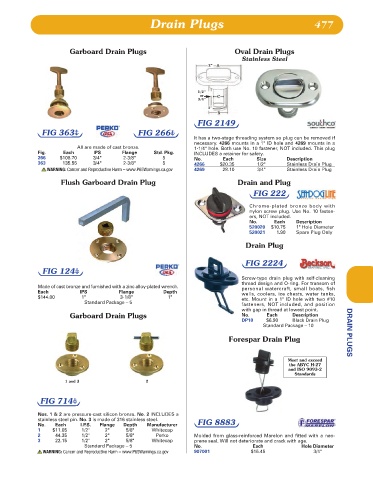

Page 478 - Lewis

Drain Plugs 477

Garboard Drain Plugs Oval Drain Plugs
Stainless Steel
2"

1/2"
or
3/4"
1"

FIG 2149
FIG 363b FIG 266b
It has a two-stage threading system so plug can be removed if
necessary. 4266 mounts in a 1" ID hole and 4269 mounts in a
All are made of cast bronze. 1-1/4" hole. Both use No. 10 fastener, NOT included. This plug
Fig. Each IPS Flange Std. Pkg. INCLUDES a retainer for safety.
266 $108.70 3/4" 2-3/8" 5 No. Each Size Description
363 135.55 3/4" 2-3/8" 5 4266 $20.35 1/2" Stainless Drain Plug
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 4269 28.10 3/4" Stainless Drain Plug

Flush Garboard Drain Plug Drain and Plug
FIG 222

Chrome-plated bronze body with
nylon screw plug. Use No. 10 fasten-
ers, NOT included.
No. Each Description
520020 $10.75 1" Hole Diameter
520021 1.90 Spare Plug Only
Drain Plug

FIG 2224
FIG 124b
Screw-type drain plug with self-cleaning
thread design and O-ring. For transom of
Made of cast bronze and furnished with a zinc alloy-plated wrench. personal watercraft, small boats, fish
Each IPS Flange Depth wells, coolers, ice chests, water tanks,
$144.00 1" 3-1/8" 1" etc. Mount in a 1" ID hole with two #10
Standard Package – 5
fasteners, NOT included, and position
with gap in thread at lowest point.
Garboard Drain Plugs No. Each Description
DP10 $6.90 Black Drain Plug
Standard Package – 10

Forespar Drain Plug DRAIN PLUGS

Meet and exceed
the ABYC H-27
and ISO 9093-2
Standards
1 and 3 2

FIG 714b

Nos. 1 & 2 are pressure-cast silicon bronze. No. 2 INCLUDES a
stainless steel pin. No. 3 is made of 316 stainless steel. FIG 8883
No. Each I.P.S. Flange Depth Manufacturer
1 $11.05 1/2" 2" 5/8" Whitecap
2 44.35 1/2" 2" 5/8" Perko Molded from glass-reinforced Marelon and fitted with a neo-
3 22.15 1/2" 2" 5/8" Whitecap prene seal. Will not deteriorate and crack with age.
Standard Package – 5 No. Each Hole Diameter
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 907001 $15.45 3/4"
