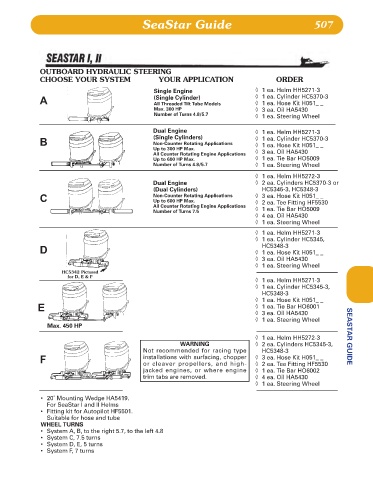

SeaStar Guide 507

OUTBOARD HYDRAULIC STEERING
CHOOSE YOUR SYSTEM YOUR APPLICATION ORDER

Single Engine ◊ 1 ea. Helm HH5271-3
A (Single Cylinder) ◊ 1 ea. Cylinder HC5370-3
◊ 1 ea. Hose Kit H051_ _
All Threaded Tilt Tube Models
Max. 300 HP ◊ 3 ea. Oil HA5430
Number of Turns 4.8/5.7 ◊ 1 ea. Steering Wheel

Dual Engine ◊ 1 ea. Helm HH5271-3
B (Single Cylinders) ◊ 1 ea. Cylinder HC5370-3
Non-Counter Rotating Applications
Up to 300 HP Max. ◊ 1 ea. Hose Kit H051_ _
All Counter Rotating Engine Applications ◊ 3 ea. Oil HA5430
Up to 600 HP Max. ◊ 1 ea. Tie Bar HO5009
Number of Turns 4.8/5.7 ◊ 1 ea. Steering Wheel

◊ 1 ea. Helm HH5272-3
Dual Engine ◊ 2 ea. Cylinders HC5370-3 or
(Dual Cylinders) HC5345-3, HC5348-3
C Non-Counter Rotating Applications ◊ 3 ea. Hose Kit H051_ _
Up to 600 HP Max.
All Counter Rotating Engine Applications ◊ 2 ea. Tee Fitting HF5530
Number of Turns 7.5 ◊ 1 ea. Tie Bar HO5009
◊ 4 ea. Oil HA5430
◊ 1 ea. Steering Wheel

◊ 1 ea. Helm HH5271-3
◊ 1 ea. Cylinder HC5345,
D ◊ 1 ea. Hose Kit H051_ _
HC5348-3
◊ 3 ea. Oil HA5430
◊ 1 ea. Steering Wheel
HC5342 Pictured
for D, E & F
◊ 1 ea. Helm HH5271-3
◊ 1 ea. Cylinder HC5345-3,
HC5348-3
E ◊ 1 ea. Hose Kit H051_ _
◊ 1 ea. Tie Bar HO6001
◊ 3 ea. Oil HA5430
◊ 1 ea. Steering Wheel
Max. 450 HP

◊ 1 ea. Helm HH5272-3 SEASTAR GUIDE
WARNING ◊ 2 ea. Cylinders HC5345-3,
Not recommended for racing type HC5348-3
F installations with surfacing, chopper ◊ 3 ea. Hose Kit H051_ _
or cleaver propellers, and high- ◊ 2 ea. Tee Fitting HF5530
jacked engines, or where engine ◊ 1 ea. Tie Bar HO6002
trim tabs are removed. ◊ 4 ea. Oil HA5430
◊ 1 ea. Steering Wheel

• 20˚ Mounting Wedge HA5419.
For SeaStar I and II Helms
• Fitting kit for Autopilot HF5501.
Suitable for hose and tube
WHEEL TURNS
• System A, B, to the right 5.7, to the left 4.8
• System C, 7.5 turns
• System D, E, 5 turns
• System F, 7 turns
