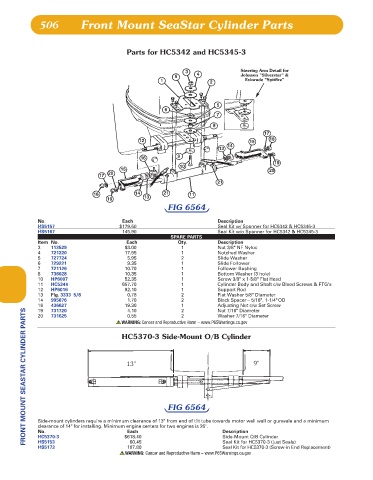

506 Front Mount SeaStar Cylinder Parts

Parts for HC5342 and HC5345-3

Steering Arm Detail for
Johnson "Silverstar" &
Evinrude “Spitfire”

FIG 6564

No. Each Description
HS5157 $179.50 Seal Kit w/ Spanner for HC5342 & HC5345-3
HS5167 145.90 Seal Kit w/o Spanner for HC5342 & HC5345-3
SPARE PARTS
Item No. Each Qty. Description
3 113529 $3.00 1 Nut 3/8" NF Nyloc
4 721220 17.55 1 Notched Washer
5 727724 5.95 2 Slide Washer
6 729221 9.35 1 Slide Follower
7 721126 10.70 1 Follower Bushing
8 736028 10.35 1 Bottom Washer (3 hole)
10 HP6007 52.35 1 Screw 3/8" x 1-5/8" Flat Head
11 HC5344 657.70 1 Cylinder Body and Shaft c/w Bleed Screws & FTG's
12 HP6016 92.10 1 Support Rod
13 Fig. 3333 5/8 0.78 2 Flat Washer 5/8" Diameter
14 995876 1.70 2 Black Spacer – 5/16", 1-1/4"OD
16 436627 19.30 1 Adjusting Nut c/w Set Screw
FRONT MOUNT SEASTAR CYLINDER PARTS
19 731720 4.10 2 Nut 7/16" Diameter
20 731625 0.55 2 Washer 7/16" Diameter
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
HC5370-3 Side-Mount O/B Cylinder

13" 9"

FIG 6564

Side-mount cylinders require a minimum clearance of 13" from end of tilt tube towards motor well wall or gunwale and a minimum
clearance of 14" for installing. Minimum engine centers for two engines is 26".
No. Each Description
HC5370-3 $618.40 Side-Mount O/B Cylinder
HS5153 60.45 Seal Kit for HC5370-3 (just Seals)
HS5173 187.80 Seal Kit for HC5370-3 (Screw-in End Replacement)
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
