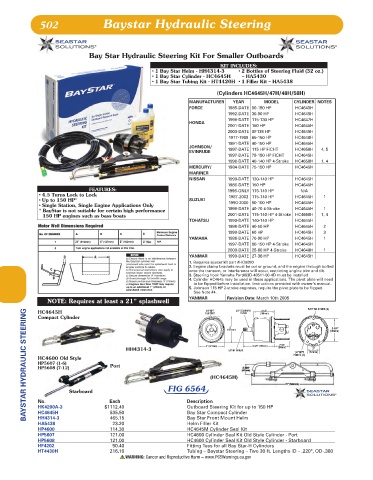

502 Baystar Hydraulic Steering

Bay Star Hydraulic Steering Kit For Smaller Outboards

KIT INCLUDES:
• 1 Bay Star Helm - HH4314-3 • 2 Bottles of Steering Fluid (32 oz.)
• 1 Bay Star Cylinder - HC4645H – HA5430
• 1 Bay Star Tubing Kit - HT4420H • 1 Filler Kit – HA5438
(Cylinders HC4645H/47H/48H/58H)
MANUFACTURER YEAR MODEL CYLINDER NOTES
FORCE 1985-DATE 90-150 HP HC4645H
1992-DATE 30-90 HP HC4645H
1998-DATE 115-130 HP HC4647H
HONDA
2001-DATE 150 HP HC4645H
2003-DATE BF135 HP HC4645H
1977-1989 65-150 HP HC4648H
1991-DATE 40-150 HP HC4645H
JOHNSON/ 1997-DATE 115 HP FICHT HC4658H 4, 5
EVINRUDE
1997-DATE 75-150 HP FICHT HC4645H
1998-DATE 40-140 HP 4-Stroke HC4658H 1, 4
MERCURY/ 1984-DATE 75-150 HP HC4645H
MARINER
NISSAN 1990-DATE 120-140 HP HC4645H
1986-DATE 150 HP HC4645H
FEATURES: 1996-ONLY 115-140 HP N/A
• 4.5 Turns Lock to Lock 1987-2002 115-140 HP HC4645H 1
• Up to 150 HP* SUZUKI 1990-2000 90-100 HP HC4645H
• Single Station, Single Engine Applications Only
* BayStar is not suitable for certain high performance 1998-DATE 40-70 4-Stroke HC4645H 1
150 HP engines such as bass boats 2001-DATE 115-140 HP 4-Stroke HC4658H 1, 4
TOHATSU 1990-DATE 140-140 HP HC4645H
1998-DATE 40-50 HP HC4645H 2
1998-DATE 60 HP HC4645H 3
YAMAHA 1986-DATE 70-90 HP HC4645H 1
1997-DATE 80-150 HP 4-Stroke HC4645H
2000-DATE 25-60 HP 4-Stroke HC4648H 1
YANMAR 1990-DATE 27-36 HP HC4645H
1. Requires spacer kit part #HO5090
2. Engine clamp brackets must be cut or ground, and the engine through bolted
onto the transom, or interference will occur, restricting engine trim and tilt.
3. Steering hook Yamaha Part#63D-48511-00-4D must be installed
4. Cylinder HC4645 may be used in these applications. The pivot plate will need
to be flipped before installation. Instructions provided with owner's manual.
5. Johnson 115 HP 2-stroke enginnes, require the pivot plate to be flipped.
See Note #4.
YANMAR Revision Date: March 10th 2006
NOTE: Requires at least a 21" splashwell
BAYSTAR HYDRAULIC STEERING
HC4645H
Compact Cylinder

HH4314-3
HC4600 Old Style
HP5607 (1-6)
HP5608 (7-12) Port
(HC4645H)
FIG 6564
Starboard
No. Each Description
HK4200A-3 $1112.40 Outboard Steering Kit for up to 150 HP
HC4645H 535.50 Bay Star Compact Cylinder
HH4314-3 465.15 Bay Star Front Mount Helm
HA5438 23.20 Helm Filler Kit
HP4600 114.30 HC4645M Cylinder Seal Kit
HP5607 121.00 HC4600 Cylinder Seal Kit Old Style Cylinder - Port
HP5608 121.00 HC4600 Cylinder Seal Kit Old Style Cylinder - Starboard
HF4202 50.40 Fitting Tees for all Bay Star-H Cylinders
HT4430H 216.10 Tubing – Baystar Steering – Two 30-ft. Lengths ID – .220", OD-.380
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
