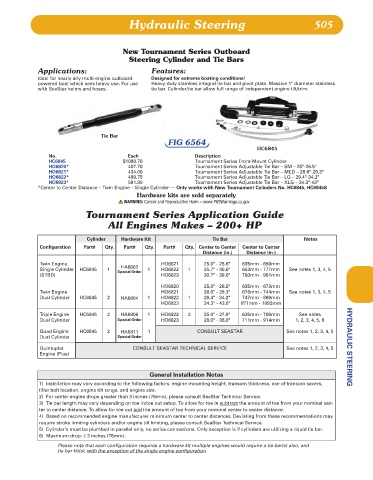

Hydraulic Steering 505

New Tournament Series Outboard
Steering Cylinder and Tie Bars
Applications: Features:
Ideal for nearly any multi-engine outboard- Designed for extreme boating conditions!
powered boat which sees heavy use. For use Heavy-duty stainless integral tie bar and pivot plate. Massive 1" diameter stainless
with SeaStar helms and hoses. tie bar. Cylinder/tie bar allow full range of independent engine tilt/trim.

Tie Bar
FIG 6564
HC6845
No. Each Description
HC6845 $1098.70 Tournament Series Front-Mount Cylinder
HO6820* 407.70 Tournament Series Adjustable Tie Bar – SM – 25"-26.5"
HO6821* 434.00 Tournament Series Adjustable Tie Bar – MED – 26.6"-29.3"
HO6822* 499.75 Tournament Series Adjustable Tie Bar – LG – 29.4"-34.2"
HO6823* 591.85 Tournament Series Adjustable Tie Bar – XLG – 34.3"-43"
*Center to Center Distance – Twin Engine – Single Cylinder — Only works with New Tournament Cylinders No. HC6845, HC6845S
Hardware kits are sold separately
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Tournament Series Application Guide

All Engines Makes – 200+ HP

Cylinder Hardware Kit Tie Bar Notes
Configuration Part# Qty. Part# Qty. Part# Qty. Center to Center Center to Center
Distance (in.) Distance (in.)
Twin Engine HO6821 25.0" - 25.6" 635mm - 650mm
HA6802
Single Cylinder HC6845 1 1 HO6822 1 25.7" - 30.6" 653mm - 777mm See notes 1, 3, 4, 5
Special Order
(STBD) HO6823 30.7" - 39.0" 780mm - 991mm
HO6820 25.0" - 26.5" 635mm - 673mm
Twin Engine HO6821 26.6" - 29.3" 676mm - 744mm See notes 1, 3, 4, 5
Dual Cylinder HC6845 2 HA6804 1 HO6822 1 29.4" - 34.2" 747mm - 869mm
HO6823 34.3" - 43.0" 871mm - 1092mm
Triple Engine HC6845 2 HA6806 1 HO6822 2 25.0" - 27.9" 635mm - 709mm See notes
Dual Cylinder Special Order HO6823 28.0" - 36.0" 711mm - 914mm 1, 2, 3, 4, 5, 6

Quad Engine HC6845 2 HA6811 1 CONSULT SEASTAR See notes 1, 2, 3, 4, 5
Dual Cylinder Special Order
Quintuplet CONSULT SEASTAR TECHNICAL SERVICE See notes 1, 2, 3, 4, 5 HYDRAULIC STEERING
Engine (Plus)

General Installation Notes
1) Installation may vary according to the following factors: engine mounting height, transom thickness, use of transom savers,
tiller bolt location, engine tilt range, and engine size.
2) For center engine drops greater than 3 inches (76mm), please consult SeaStar Technical Service.
3) Tie bar length may vary depending on toe in/toe out setup. To allow for toe in subtract the amount of toe from your nominal cen-
ter to center distance. To allow for toe out add the amount of toe from your nominal center to center distance.
4) Based on recommended engine manufacturer minimum center to center distances. Deviating from these recommendations may
require stroke limiting cylinders and/or engine tilt limiting, please consult SeaStar Technical Service.
5) Cylinder's must be plumbed in parallel only, no series connections. Only exception is if cylinders are utilizing a liquid tie bar.
6) Maximum drop: ≤ 3 inches (76mm).
Please note that each configuration requires a hardware kit multiple engines would require a tie bar(s) also, and
tie bar kit(s), with the exception of the single engine configuration.
