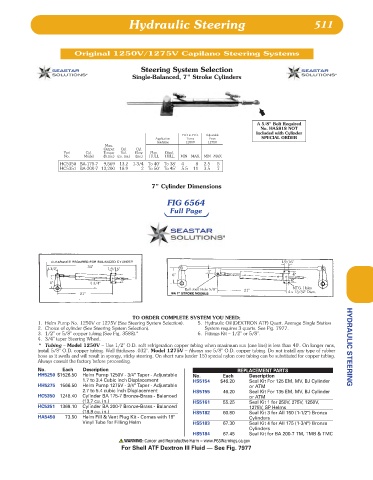

Page 512 - Lewis

Hydraulic Steering 511

Original 1250V/1275V Capilano Steering Systems

Steering System Selection
Single-Balanced, 7" Stroke Cylinders

Ë

A 5/8" Bolt Required
No. HA5818 NOT
Included with Cylinder
H.O to H.O. Adjustable
Application Turns From SPECIAL ORDER
Guideline 1250V 1275V
Max.
Output Cyl. Cyl.
Part Cyl. Torque Vol. Bore Plan. Displ.
No. Model (lb.ins.) (cu. ins.) (ins.) HULL HULL MIN MAX. MIN MAX
HC5350 BA-175-7 9,569 13.2 1-3/4 To 40' To 38' 4 8 2.5 5
HC5351 BA-200-7 13,200 18.9 2 To 50' To 45' 5.5 11 3.5 7
7" Cylinder Dimensions

FIG 6564
Full Page

1-9/16"
34"
4-1/2" 1-9/16"
3"
6" 4"
6" 4-3/4" 4" 4"
MTG. Holes
Ball Joint Hole 5/8" 21"
21" 4 x 13/32" Diam.

TO ORDER COMPLETE SYSTEM YOU NEED:
1. Helm Pump No. 1250V or 1275V (See Steering System Selection). 5. Hydraulic Oil (DEXTRON ATF) Quart. Average Single Station
2. Choice of cylinder (See Steering System Selection). System requires 3 quarts. See Fig. 7977.
3. 1/2" or 5/8" copper tubing (See Fig. 3588).* 6. Fittings Kit – 1/2" or 5/8".
4. 3/4" taper Steering Wheel.
* Tubing – Model 1250V – Use 1/2" O.D. soft refrigeration copper tubing when maximum run (one line) is less than 40'. On longer runs, HYDRAULIC STEERING
install 5/8" O.D. copper tubing. Wall thickness .032". Model 1275V – Always use 5/8" O.D. copper tubing. Do not install any type of rubber
hose as it swells and will result in spongy, sticky steering. On short runs (under 15') special nylon core tubing can be substituted for copper tubing.
Always consult the factory before proceeding.
No. Each Description REPLACEMENT PARTS
HH5250 $1526.50 Helm Pump 1250V - 3/4" Taper - Adjustable No. Each Description
1.7 to 3.4 Cubic inch Displacement HS5154 $46.20 Seal Kit For 125 EM, MV, BJ Cylinder
HH5275 1566.50 Helm Pump 1275V - 3/4" Taper - Adjustable or ATM
2.7 to 5.4 cubic inch Displacement HS5155 46.20 Seal Kit For 135 EM, MV, BJ Cylinder
HC5350 1248.40 Cylinder BA 175-7 Bronze-Brass - Balanced or ATM
(13.7 cu. in.) HS5161 55.25 Seal Kit 1 for 250V, 275V, 1250V,
HC5351 1369.10 Cylinder BA 200-7 Bronze-Brass - Balanced 1275V, SP Helms
(18.9 cu. in.) HS5182 60.80 Seal Kit 3 for All 150 (1-1/2") Bronze
HA5450 73.50 Helm Fill & Vent Plug Kit - Comes with 18" Cylinders
Vinyl Tube for Filling Helm HS5183 67.30 Seal Kit 4 for All 175 (1-3/4") Bronze
Cylinders
HS5184 67.45 Seal Kit for BA 200-7 TM, TMB & TMC
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
For Shell ATF Dextron III Fluid — See Fig. 7977
