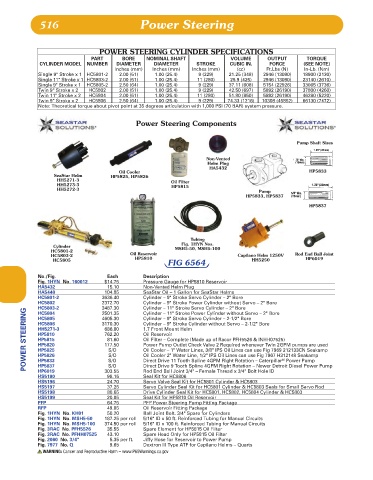

516 Power Steering

POWER STEERING CYLINDER SPECIFICATIONS
PART BORE NOMINAL SHAFT VOLUME OUTPUT TORQUE
CYLINDER MODEL NUMBER DIAMETER DIAMETER STROKE CUBIC IN. FORCE (SEE NOTE)
Inches (mm) Inches (mm) Inches (mm) (cc) Ft.Lbs (N) In-Lb. (Nm)
Single 9" Stroke x 1 HC5801-2 2.00 (51) 1.00 (25.4) 9 (229) 21.25 (348) 2946 (13090) 18900 (2130)
Single 11" Stroke x 1 HC5803-2 2.00 (51) 1.00 (25.4) 11 (280) 25.9 (425) 2946 (13090) 23140 (2610)
Single 9" Stroke x 1 HC5805-2 2.50 (64) 1.00 (25.4) 9 (229) 37.11 (608) 5154 (22926) 33065 (3736)
Twin 9" Stroke x 2 HC5802 2.00 (51) 1.00 (25.4) 9 (229) 42.50 (697) 5892 (26190) 37800 (4260)
Twin 11" Stroke x 2 HC5804 2.00 (51) 1.00 (25.4) 11 (280) 51.80 (850) 5892 (26190) 46280 (5220)
Twin 9" Stroke x 2 HC5806 2.50 (64) 1.00 (25.4) 9 (229) 74.33 (1216) 10308 (45852) 66130 (7472)
Note: Theoretical torque about pivot point at 35 degrees articulation with 1,000 PSI (70 BAR) system pressure.

Power Steering Components

Pump Shaft Sizes

Non-Vented
Helm Plug
HA5432
Oil Cooler HP5833
SeaStar Helm HP5825, HP5826
HH5271-3 Oil Filter
HH5273-3 HP5815
HH5272-3
Pump
HP5833, HP5837
HP5837

Tubing
Fig. 1HYN Nos.
Cylinder
HC5801-2 MSH5-50, MSH5-100
HC5803-2 Oil Reservoir Capilano Helm 1250V Rod End Ball Joint
HP5810
HC5805 HH5250 HP6019
FIG 6564
No./Fig. Each Description
Fig. 1HYN No. 160012 $14.75 Pressure Gauge for HP5810 Reservoir
HA5432 15.10 Non-Vented Helm Plug
HA5440 104.85 SeaStar Oil – 1 Gallon for SeaStar Helms
HC5801-2 3636.40 Cylinder – 9" Stroke Servo Cylinder – 2" Bore
HC5802 2372.70 Cylinder – 9" Stroke Power Cylinder without Servo – 2" Bore
Cylinder – 11" Stroke Servo Cylinder – 2" Bore
HC5803-2
3487.30
POWER STEERING HC5806 3170.30 Cylinder – 9" Stroke Cylinder without Servo – 2-1/2" Bore
2501.35
HC5804
Cylinder – 11" Stroke Power Cylinder without Servo – 2" Bore
4605.30
HC5805
Cylinder – 9" Stroke Servo Cylinder – 2-1/2" Bore
1.7 Front Mount Helm
686.00
HH5271-3
762.20
HP5810
Oil Reservoir
Oil Filter – Complete (Made up of Racor PFH5526 & INHH07525)
81.60
HP5815
Power Pump Outlet Check Valve 2 Required whenever Twin 2GPM pumps are used
HP5820
177.50
HP5825
Oil Cooler – 1" Water Lines, 3/8" IPS Oil Lines can use Fig 7969 212133CN Seakamp
S/O
HP5826
Oil Cooler 2" Water Line, 1/2" IPS Oil Lines can use Fig 7967 H312148 Seakamp
S/O
S/O
HP5833
Direct Drive 9 Tooth Spline 4GPM Right Rotation – Newer Detroit Diesel Power Pump
S/O
HP5837
Rod End Ball Joint 3/4" – Female Thread x 3/4" Bolt Hole ID
HP6019
98.15
Seal Kit for HC5806
HS5180 303.55 Direct Drive 11 Tooth Spline 4GPM Right Rotation – Caterpillar ® Power Pump
HS5196 24.70 Servo Valve Seal Kit for HC5801 Cylinder & HC5803
HS5197 37.25 Servo Cylinder Seal Kit for HC5801 Cylinder & HC5803 Seals for Small Servo Rod
HS5198 80.65 Drive Cylinder Seal Kit for HC5801, HC5802, HC5804 Cylinder & HC5803
HS5199 20.05 Seal Kit for HP5810 Oil Reservoir
PFP 64.75 PFP Power Steering Pump Fitting Package
RFP 49.05 Oil Reservoir Fitting Package
Fig. 1HYN No. KH01 50.20 Ball Joint Bolt. 3/4" Spare for Cylinders
Fig. 1HYN No. MSH5-50 187.25 per roll 5/16" ID x 50 ft. Reinforced Tubing for Manual Circuits
Fig. 1HYN No. MSH5-100 374.50 per roll 5/16" ID x 100 ft. Reinforced Tubing for Manual Circuits
Fig. 3RAC No. PFH5526 35.55 Spare Element for HP5815 Oil Filter
Fig. 3RAC No. PFHH07525 43.10 Spare Head Only for HP5815 Oil Filter
Fig. 2060 No. 3/4" 5.35 per ft. Jiffy Hose for Reservoir to Power Pump
Fig. 7977 No. Q 9.65 Dextron III Type ATF for Capilano Helms – Quarts
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
