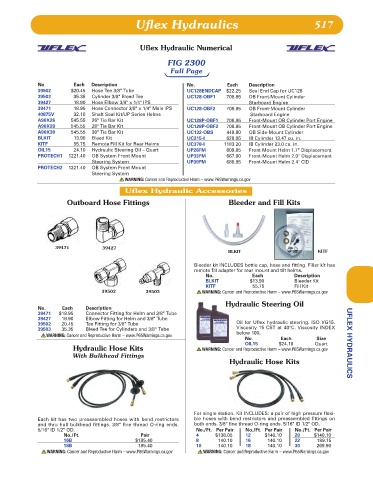

Page 518 - Lewis

Uflex Hydraulics 517

Uflex Hydraulic Numerical

FIG 2300
Full Page

No. Each Description No. Each Description
39502 $20.45 Hose Tee 3/8" Tube UC128ENDCAP $22.25 Seal End Cap for UC128
39503 35.35 Cylinder 3/8" Bleed Tee UC128-OBF1 708.85 OB Front-Mount Cylinder
39427 18.90 Hose Elbow 3/8" x 1/4" IPS Starboard Engine
39471 18.95 Hose Connector 3/8" x 1/4" Male IPS UC128-OBF2 708.85 OB Front-Mount Cylinder
40875V 32.10 Shaft Seal Kit/UP Series Helms Starboard Engine
A90X26 545.55 26" Tie Bar Kit UC128P-OBF1 708.85 Front-Mount OB Cylinder Port Engine
A90X28 545.55 28" Tie Bar Kit UC128P-OBF2 708.85 Front-Mount OB Cylinder Port Engine
A90X30 545.55 30" Tie Bar Kit UC132-OBS 449.80 OB Side-Mount Cylinder
BLKIT 13.90 Bleed Kit UC215-I 620.05 IB Cylinder 13.47 cu. in.
KITF 55.75 Remote Fill Kit for Rear Helms UC378-I 1183.20 IB Cylinder 23.0 cu. in.
OIL15 24.10 Hydraulic Steering Oil – Quart UP28FM 609.85 Front Mount Helm 1.7" Displacement
PROTECH1 1221.40 OB System Front Mount UP33FM 667.00 Front-Mount Helm 2.0" Displacement
Steering System UP39FM 688.85 Front-Mount Helm 2.4" CID
PROTECH2 1221.40 OB System Front Mount
Steering System
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Uflex Hydraulic Accessories
Outboard Hose Fittings Bleeder and Fill Kits

39471 39427
BLKIT KITF

Bleeder kit INCLUDES bottle cap, hose and fitting. Filler kit has
remote fill adapter for rear mount and tilt helms.
No. Each Description
BLKIT $13.90 Bleeder Kit
KITF 55.75 Fill Kit
39502 39503 WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Hydraulic Steering Oil
No. Each Description
39471 $18.95 Connector Fitting for Helm and 3/8" Tube
39427 18.90 Elbow Fitting for Helm and 3/8" Tube
39502 20.45 Tee Fitting for 3/8" Tube Oil for Uflex hydraulic steering. ISO VG15.
39503 35.35 Bleed Tee for Cylinders and 3/8" Tube Viscosity 15 CST at 40°C. Viscosity INDEX
below 100.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
No. Each Size
OIL15 $24.10 Quart UFLEX HYDRAULICS
Hydraulic Hose Kits WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
With Bulkhead Fittings
Hydraulic Hose Kits

For single station. Kit INCLUDES: a pair of high pressure flexi-
Each kit has two preassembled hoses with bend restrictors ble hoses with bend restrictors and preassembled fittings on
and thru hull bulkhead fittings. 3/8" fine thread O-ring ends. both ends. 3/8" fine thread O-ring ends. 5/16" ID 1/2" OD.
5/16" ID 1/2" OD. No./Ft. Per Pair No./Ft. Per Pair No./Ft. Per Pair
No./Ft. Pair 4 $138.05 12 $140.10 20 $140.10
16B $185.40 8 140.10 16 140.10 22 189.15
18B 185.40 10 140.10 18 140.10 30 269.90
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
