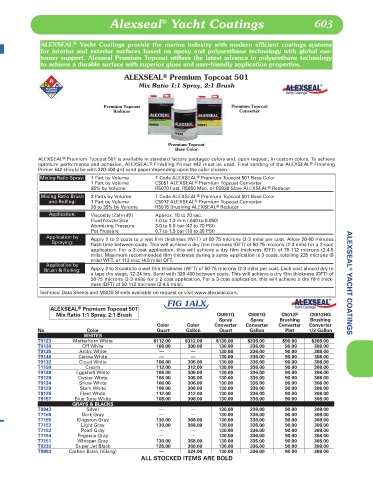

Alexseal Yacht Coatings 603
®

ALEXSEAL ® Yacht Coatings provide the marine industry with modern efficient coatings systems
for interior and exterior surfaces based on epoxy and polyurethane technology with global cus-
tomer support. Alexseal Premium Topcoat utilizes the latest advance in polyurethane technology
to achieve a durable surface with superior gloss and user-friendly application properties.

®
ALEXSEAL Premium Topcoat 501
Mix Ratio 1:1 Spray, 2:1 Brush

Premium Topcoat Premium Topcoat
Reducer Converter

Premium Topcoat
Base Color
ALEXSEAL ® Premium Topcoat 501 is available in standard factory packaged colors and, upon request, in custom colors. To achieve
optimum performance and adhesion, ALEXSEAL ® Finishing Primer 442 must be used. Final sanding of the ALEXSEAL ® Finishing
Primer 442 should be with 320-400 grit sand paper depending upon the color chosen.
Mixing Ratio Spray: 1 Part by Volume T Code ALEXSEAL ® Premium Topcoat 501 Base Color
1 Part by Volume C5051 ALEXSEAL ® Premium Topcoat Converter
35% by Volume R5070 Fast, R5050 Med. or R5030 Slow ALEXSEAL ® Reducer
Mixing Ratio Brush 2 Parts by Volume T Code ALEXSEAL ® Premium Topcoat 501 Base Color
and Rolling: 1 Part by Volume C5012 ALEXSEAL ® Premium Topcoat Converter
20 to 35% by Volume R5015 Brushing ALEXSEAL ® Reducer
Application: Viscosity (Zahn #2) Approx. 18 to 20 sec.
Fluid Nozzle Size 1.0 to 1.3 mm (.040 to 0.050)
Atomizing Pressure 3.0 to 5.0 bar (42 to 70 PSI)
Pot Pressure 0.7 to 1.5 bar (10 to 20 PSI)
Application by Apply 2 to 3 coats to a wet film thickness (WFT) of 50-75 microns (2-3 mils) per coat. Allow 20-60 minutes
Spraying:
flash time between coats. This will achieve a dry film thickness (DFT) of 50-75 microns (2-3 mils) for a 2-coat
application. For a 3-coat application, this will achieve a dry film thickness (DFT) of 75-112 microns (2-4.5 ALEXSEAL ®
mils). Maximum recommended film thickness during a spray application is 3 coats, totalling 225 microns (9
mils) WFT, or 112 mic. (4.5 mils) DFT.
Application by
Brush & Rolling: Apply 2 to 3 coats to a wet film thickness (WFT) of 50-75 microns (2-3 mils) per coat. Each coat should dry to
a tape dry stage, 12-24 hrs. Sand with 320-400 between coats. This will achieve a dry film thickness (DFT) of
50-75 microns (2-3 mils) for a 2-coat application. For a 3-coat application, this will achieve a dry film thick-
ness (DFT) of 50-112 microns (2-4.5 mils).
Technical Data Sheets and MSDS Sheets available on request or visit www.alexseal.com.
FIG 1ALX YACHT COATINGS
®
ALEXSEAL Premium Topcoat 501
Mix Ratio 1:1 Spray, 2:1 Brush C5051Q C5051G C5012P C5012HG
Spray Spray Brushing Brushing
Color Color Converter Converter Converter Converter
No. Color Quart Gallon Quart Gallon Pint 1/2 Gallon
WHITES
T9123 Matterhorn White $112.00 $312.00 $130.00 $336.00 $90.00 $308.00
T9130 Off White 108.00 306.00 130.00 336.00 90.00 308.00
T9135 Arctic White — — 130.00 336.00 90.00 308.00
T9146 Carina White — — 130.00 336.00 90.00 308.00
T9132 Cloud White 108.00 306.00 130.00 336.00 90.00 308.00
T1150 Cream 112.00 312.00 130.00 336.00 90.00 308.00
T9138 Eggshell White 108.00 306.00 130.00 336.00 90.00 308.00
T9128 Oyster White 108.00 306.00 130.00 336.00 90.00 308.00
T9134 Snow White 108.00 306.00 130.00 336.00 90.00 308.00
T9129 Stark White 108.00 306.00 130.00 336.00 90.00 308.00
T9126 Fleet White 112.00 312.00 130.00 336.00 90.00 308.00
T9157 Blue Tone White 108.00 306.00 130.00 336.00 90.00 308.00
GRAYS & BLACKS
T0943 Silver — — 130.00 336.00 90.00 308.00
T7156 Dark Gray — — 130.00 336.00 90.00 308.00
T7155 Kingston Gray 130.00 368.00 130.00 336.00 90.00 308.00
T7153 Light Gray 130.00 368.00 130.00 336.00 90.00 308.00
T7152 Pearl Gray — — 130.00 336.00 90.00 308.00
T7154 Pegasus Gray — — 130.00 336.00 90.00 308.00
T7151 Whisper Gray 130.00 368.00 130.00 336.00 90.00 308.00
T9232 Super Jet Black 126.00 360.00 130.00 336.00 90.00 308.00
T9893 Carbon Black (Viking) — 524.00 130.00 336.00 90.00 308.00
ALL STOCKED ITEMS ARE BOLD
