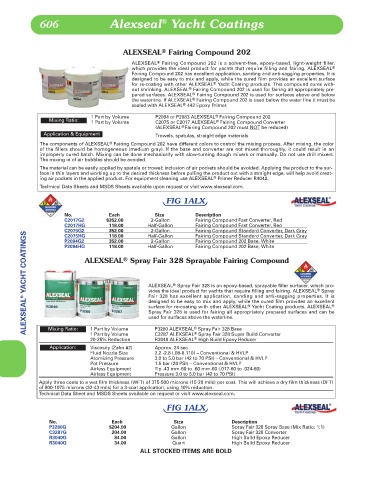

Page 607 - Lewis

606 Alexseal Yacht Coatings
®

ALEXSEAL Fairing Compound 202
®
ALEXSEAL ® Fairing Compound 202 is a solvent-free, epoxy-based, light-weight filler,
which provides the ideal product for yachts that require filling and fairing. ALEXSEAL ®
Fairing Compound 202 has excellent application, sanding and anti-sagging properties. It is
designed to be easy to mix and apply, while the cured film provides an excellent surface
for re-coating with other ALEXSEAL ® Yacht Coating products. This compound cures with-
out shrinking. ALEXSEAL ® Fairing Compound 202 is used for fairing all appropriately pre-
pared surfaces. ALEXSEAL ® Fairing Compound 202 is used for surfaces above and below
the waterline. If ALEXSEAL ® Fairing Compound 202 is used below the water line it must be
sealed with ALEXSEAL ® 442 Epoxy Primer.
1 Part by Volume P2094 or P2083 ALEXSEAL ® Fairing Compound 202
Mixing Ratio:
1 Part by Volume C2075 or C2017 ALEXSEAL ® Fairing Compound Converter
(ALEXSEAL ® Fairing Compound 202 must NOT be reduced)
Application & Equipment Trowels, spatulas, straight edge materials
The components of ALEXSEAL ® Fairing Compound 202 have different colors to control the mixing process. After mixing, the color
of the fillers should be homogeneous (medium gray). If the base and converter are not mixed thoroughly, it could result in an
improperly cured batch. Mixing can be done mechanically with slow-turning dough mixers or manually. Do not use drill mixers.
The mixing in of air bubbles should be avoided.
The material can be easily applied by spatula or trowel; inclusion of air pockets should be avoided. Applying the product to the sur-
face in thin layers and working up to the desired thickness before pulling the product out with a straight edge, will help avoid creat-
ing air pockets in the applied product. For equipment cleaning use ALEXSEAL ® Primer Reducer R4042.
Technical Data Sheets and MSDS Sheets available upon request or visit www.alexseal.com.

FIG 1ALX

No. Each Size Description
C2017G2 $352.00 2-Gallon Fairing Compound Fast Converter, Red
C2017HG 118.00 Half-Gallon Fairing Compound Fast Converter, Red
2-Gallon
C2075G2 352.00 Half-Gallon Fairing Compound Standard Converter, Dark Gray
YACHT COATINGS P2094HG ALEXSEAL Spray Fair 328 Sprayable Fairing Compound
C2075HG
118.00
Fairing Compound Standard Converter, Dark Gray
352.00
P2094G2
Fairing Compound 202 Base, White
2-Gallon
Fairing Compound 202 Base, White
118.00
Half-Gallon
®
ALEXSEAL ® Spray Fair 328 is an epoxy-based, sprayable filler surfacer, which pro-
Fair 328 has excellent application, sanding and anti-sagging properties. It is
ALEXSEAL ® vides the ideal product for yachts that require filling and fairing. ALEXSEAL ® Spray
designed to be easy to mix and apply, while the cured film provides an excellent
surface for re-coating with other ALEXSEAL ® Yacht Coating products. ALEXSEAL ®
Spray Fair 328 is used for fairing all appropriately prepared surfaces and can be
used for surfaces above the waterline.
1 Part by Volume
Mixing Ratio:
1 Part by Volume
C3287 ALEXSEAL ® Spray Fair 328 Super Build Converter
20-25% Reduction P3280 ALEXSEAL ® Spray Fair 328 Base
R3040 ALEXSEAL ® High Build Epoxy Reducer
Application: Viscosity (Zahn #2) Approx. 24 sec.
Fluid Nozzle Size 2.2 -2.8 (.08-0.110) – Conventional & HVLP
Atomizing Pressure 3.0 to 5.0 bar (42 to 70 PSI) – Conventional & HVLP
Pot Pressure 1.5 bar (20 PSI) – Conventional & HVLP
Airless Equipment Tip .43 mm-60 to .60 mm-60 (.017-60 to .024-60)
Airless Equipment Pressure 3.0 to 5.0 bar (42 to 70 PSI)
Apply three coats to a wet film thickness (WFT) of 375-500 microns (15-20 mils) per coat. This will achieve a dry film thickness (DFT)
of 800-1075 microns (32-43 mils) for a 3-coat application, using 10% reduction.
Technical Data Sheet and MSDS Sheets available on request or visit www.alexseal.com.
FIG 1ALX

No. Each Size Description
P3280G $204.00 Gallon Spray Fair 328 Spray Base (Mix Ratio: 1:1)
C3287G 204.00 Gallon Spray Fair 328 Converter
R3040G 84.00 Gallon High Build Epoxy Reducer
R3040Q 34.00 Quart High Build Epoxy Reducer
ALL STOCKED ITEMS ARE BOLD
