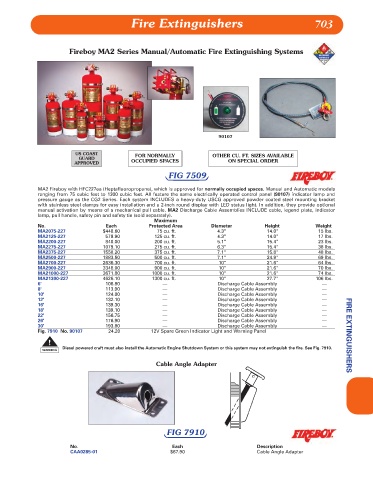

Page 704 - Lewis

Fire Extinguishers 703

Fireboy MA2 Series Manual/Automatic Fire Extinguishing Systems

90107

US COAST FOR NORMALLY OTHER CU. FT. SIZES AVAILABLE
GUARD
APPROVED OCCUPIED SPACES ON SPECIAL ORDER
FIG 7509

MA2 Fireboy with HFC227ea (Heptafluoropropane), which is approved for normally occupied spaces. Manual and Automatic models
ranging from 75 cubic feet to 1300 cubic feet. All feature the same electrically operated control panel (90107) indicator lamp and
pressure gauge as the CG2 Series. Each system INCLUDES a heavy-duty USCG approved powder coated steel mounting bracket
with stainless steel clamps for easy installation and a 2-inch round display with LED status light. In addition, they provide optional
manual activation by means of a mechanical pull cable. MA2 Discharge Cable Assemblies INCLUDE cable, legend plate, indicator
lamp, pull handle, safety pin and safety tie (sold separately).
Maximum
No. Each Protected Area Diameter Height Weight
MA2075-227 $440.60 75 cu. ft. 4.3" 14.0" 15 lbs.
MA2125-227 579.90 125 cu. ft. 4.3" 14.0" 17 lbs.
MA2200-227 840.00 200 cu. ft. 5.1" 15.4" 23 lbs.
MA2275-227 1079.10 275 cu. ft. 6.3" 15.4" 38 lbs.
MA2375-227 1550.20 375 cu. ft. 7.1" 15.8" 48 lbs.
MA2500-227 1883.50 500 cu. ft. 7.1" 24.9" 69 lbs.
MA2700-227 2636.30 700 cu. ft. 10" 21.6" 64 lbs.
MA2900-227 3348.00 900 cu. ft. 10" 21.6" 70 lbs.
MA21000-227 3671.80 1000 cu. ft. 10" 21.6" 74 lbs.
MA21300-227 4626.10 1300 cu. ft. 10" 27.7" 106 lbs.
6' 106.80 — Discharge Cable Assembly —
8' 113.90 — Discharge Cable Assembly —
10' 124.00 — Discharge Cable Assembly —
12' 132.10 — Discharge Cable Assembly —
16' 139.30 — Discharge Cable Assembly —
18' 139.10 — Discharge Cable Assembly —
22' 156.75 — Discharge Cable Assembly —
26' 176.90 — Discharge Cable Assembly —
30' 193.80 — Discharge Cable Assembly —
Fig. 7910 No. 90107 24.20 12V Spare Green Indicator Light and Warning Panel FIRE EXTINGUISHERS
!
Diesel powered craft must also install the Automatic Engine Shutdown System or this system may not extinguish the fire. See Fig. 7910.
WARNING
Cable Angle Adapter

FIG 7910

No. Each Description
CAA0285-01 $67.90 Cable Angle Adapter
