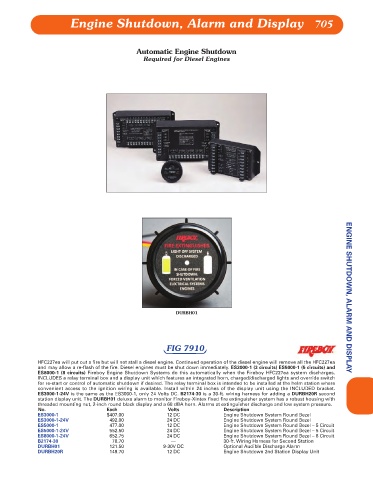

Engine Shutdown, Alarm and Display 705

Automatic Engine Shutdown
Required for Diesel Engines

DURBH01 ENGINE SHUTDOWN, ALARM AND DISPLAY

FIG 7910

HFC227ea will put out a fire but will not stall a diesel engine. Continued operation of the diesel engine will remove all the HFC227ea
and may allow a re-flash of the fire. Diesel engines must be shut down immediately. ES3000-1 (3 circuits) ES5000-1 (5 circuits) and
ES8000-1 (8 circuits) Fireboy Engine Shutdown Systems do this automatically when the Fireboy HFC227ea system discharges.
INCLUDES a relay terminal box and a display unit which features an integrated horn, charged/discharged lights and override switch
for re-start or control of automatic shutdown if desired. The relay terminal box is intended to be installed at the helm station where
convenient access to the ignition wiring is available. Install within 24 inches of the display unit using the INCLUDED bracket.
ES3000-1-24V is the same as the ES3000-1, only 24 Volts DC. B2174-30 is a 30-ft. wiring harness for adding a DURBH20R second
station display unit. The DURBH01 deluxe alarm to monitor Fireboy-Xintex fixed fire extinguisher system has a robust housing with
threaded mounting nut, 2-inch round black display and a 68 dBA horn. Alarms at extinguisher discharge and low system pressure.
No. Each Volts Description
ES3000-1 $407.00 12 DC Engine Shutdown System Round Bezel
ES3000-1-24V 492.00 24 DC Engine Shutdown System Round Bezel
ES5000-1 477.00 12 DC Engine Shutdown System Round Bezel – 5 Circuit
ES5000-1-24V 552.50 24 DC Engine Shutdown System Round Bezel – 5 Circuit
ES8000-1-24V 652.75 24 DC Engine Shutdown System Round Bezel – 8 Circuit
B2174-30 70.70 — 30-ft. Wiring Harness for Second Station
DURBH01 121.50 9-30V DC Optional Audible Discharge Alarm
DURBH20R 149.70 12 DC Engine Shutdown 2nd Station Display Unit
