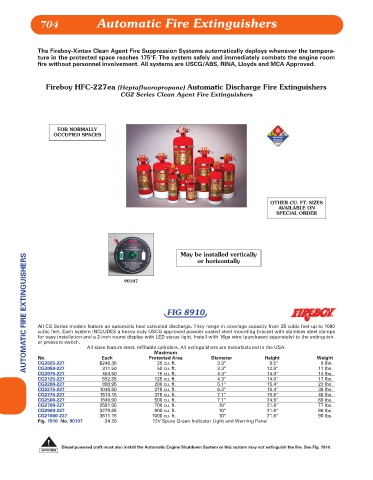

704 Automatic Fire Extinguishers

The Fireboy-Xintex Clean Agent Fire Suppression Systems automatically deploys whenever the tempera-
ture in the protected space reaches 175°F. The system safely and immediately combats the engine room
fire without personnel involvement. All systems are USCG/ABS, RINA, Lloyds and MCA Approved.

Fireboy HFC-227ea (Heptafluoropropane) Automatic Discharge Fire Extinguishers
CG2 Series Clean Agent Fire Extinguishers

FOR NORMALLY
OCCUPIED SPACES

OTHER CU. FT. SIZES
AVAILABLE ON
SPECIAL ORDER

May be installed vertically
AUTOMATIC FIRE EXTINGUISHERS
or horizontally

90107

FIG 8910

All CG Series models feature an automatic heat activated discharge. They range in coverage capacity from 25 cubic feet up to 1000
cubic feet. Each system INCLUDES a heavy-duty USCG approved powder coated steel mounting bracket with stainless steel clamps
for easy installation and a 2-inch round display with LED status light. Install with 16ga wire (purchased separately) to the extinguish-
er pressure switch.
All sizes feature steel, refillable cylinders. All extinguishers are manufactured in the USA.
Maximum
No. Each Protected Area Diameter Height Weight
CG2025-227 $246.35 25 cu. ft. 3.3" 9.5" 8 lbs.
CG2050-227 311.50 50 cu. ft. 3.3" 12.8" 11 lbs.
CG2075-227 404.50 75 cu. ft. 4.3" 14.0" 15 lbs.
CG2125-227 552.55 125 cu. ft. 4.3" 14.0" 17 lbs.
CG2200-227 808.95 200 cu. ft. 5.1" 15.4" 23 lbs.
CG2275-227 1045.50 275 cu. ft. 6.3" 15.4" 38 lbs.
CG2375-227 1514.15 375 cu. ft. 7.1" 15.8" 48 lbs.
CG2500-227 1840.90 500 cu. ft. 7.1" 24.9" 69 lbs.
CG2700-227 2591.95 700 cu. ft. 10" 21.6" 77 lbs.
CG2900-227 3279.85 900 cu. ft. 10" 21.6" 86 lbs.
CG21000-227 3611.15 1000 cu. ft. 10" 21.6" 90 lbs.
Fig. 7910 No. 90107 24.20 12V Spare Green Indicator Light and Warning Panel

!
Diesel powered craft must also install the Automatic Engine Shutdown System or this system may not extinguish the fire. See Fig. 7910.
WARNING
