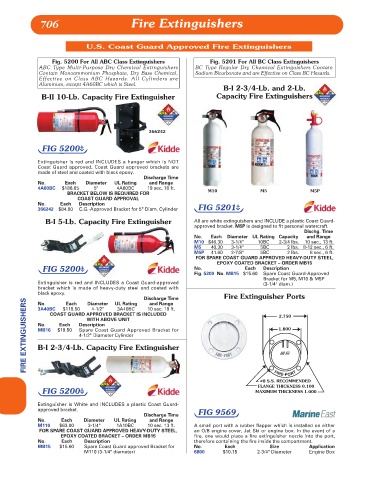

706 Fire Extinguishers

U.S. Coast Guard Approved Fire Extinguishers

Fig. 5200 For All ABC Class Extinguishers Fig. 5201 For All BC Class Extinguishers
ABC Type Multi-Purpose Dry Chemical Extinguishers BC Type Regular Dry Chemical Extinguishers Contain
Contain Monoammonium Phosphate, Dry Base Chemical, Sodium Bicarbonate and are Effective on Class BC Hazards.
Effective on Class ABC Hazards. All Cylinders are
Aluminum, except 4A60BC which is Steel.
B-I 2-3/4-Lb. and 2-Lb.
B-II 10-Lb. Capacity Fire Extinguisher Capacity Fire Extinguishers

366242

FIG 5200b

Extinguisher is red and INCLUDES a hanger which is NOT
Coast Guard approved. Coast Guard approved brackets are
made of steel and coated with black epoxy.
Discharge Time
No. Each Diameter UL Rating and Range
4A60BC $186.85 5" 4A60BC 19 sec. 18 ft. M10 M5
BRACKET BELOW IS REQUIRED FOR M5P
COAST GUARD APPROVAL
No. Each Description
366242 $84.00 C.G.-Approved Bracket for 5" Diam. Cylinder FIG 5201b
B-I 5-Lb. Capacity Fire Extinguisher All are white extinguishers and INCLUDE a plastic Coast Guard-
approved bracket. M5P is designed to fit personal watercraft.
Dischg. Time
No. Each Diameter UL Rating Capacity and Range
M10 $46.30 3-1/4" 10BC 2-3/4 lbs. 10 sec., 13 ft.
M5 40.30 3-1/4" 5BC 2 lbs. 8-12 sec., 6 ft.
M5P 41.60 2-7/8" 5BC 2 lbs. 8 sec., 6 ft.
FOR SPARE COAST GUARD APPROVED HEAVY-DUTY STEEL,
EPOXY COATED BRACKET – ORDER MB15
FIG 5200b No. Each Description
Fig. 5200 No. MB15 $15.60 Spare Coast Guard-Approved
Bracket for M5, M10 & M5P
Extinguisher is red and INCLUDES a Coast Guard-approved (3-1/4" diam.)
bracket which is made of heavy-duty steel and coated with
black epoxy. Each Diameter UL Rating Discharge Time Fire Extinguisher Ports
FIRE EXTINGUISHERS No. COAST GUARD APPROVED BRACKET IS INCLUDED
No.
and Range
10 sec. 18 ft.
3A40BC
4-1/2"
3A40BC
$118.50
WITH ABOVE UNIT
Each
Description
MB16
$19.50
Spare Coast Guard Approved Bracket for
4-1/2" Diameter Cylinder
B-I 2-3/4-Lb. Capacity Fire Extinguisher

FIG 5200b

Extinguisher is White and INCLUDES a plastic Coast Guard-
approved bracket. FIG 9569
Discharge Time
No. Each Diameter UL Rating and Range
M110 $63.00 3-1/4" 1A10BC 10 sec. 13 ft. A small port with a rubber flapper which is installed on either
FOR SPARE COAST GUARD APPROVED HEAVY-DUTY STEEL, an O/B engine cover, Jet Ski or engine box. In the event of a
EPOXY COATED BRACKET – ORDER MB15 fire, one would place a fire extinguisher nozzle into the port,
No. Each Description therefore containing the fire inside the compartment.
MB15 $15.60 Spare Coast Guard approved Bracket for No. Each Size Application
M110 (3-1/4" diameter) 6800 $10.15 2-3/4" Diameter Engine Box
