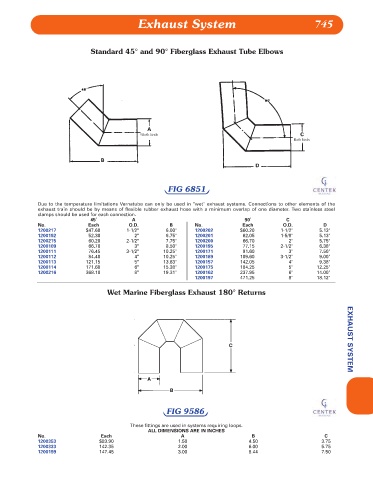

Exhaust System 745

Standard 45° and 90° Fiberglass Exhaust Tube Elbows

Both Ends
Both Ends

FIG 6851

Due to the temperature limitations Vernatube can only be used in "wet" exhaust systems. Connections to other elements of the
exhaust train should be by means of flexible rubber exhaust hose with a minimum overlap of one diameter. Two stainless steel
clamps should be used for each connection.
45˚ A 90˚ C
No. Each O.D. B No. Each O.D. D
1200217 $47.60 1-1/2" 6.00" 1200202 $60.20 1-1/2" 5.13"
1200192 52.30 2" 6.75" 1200201 62.05 1-5/8" 5.13"
1200215 60.20 2-1/2" 7.75" 1200200 66.70 2" 5.75"
1200109 66.70 3" 8.50" 1200195 77.15 2-1/2" 6.38"
1200111 76.45 3-1/2" 10.25" 1200171 91.60 3" 7.50"
1200112 84.40 4" 10.25" 1200189 109.60 3-1/2" 9.00"
1200113 121.15 5" 13.63" 1200157 142.05 4" 9.38"
1200114 171.60 6" 15.38" 1200175 184.25 5" 12.25"
1200216 368.10 8" 19.31" 1200162 237.95 6" 14.00"
1200197 471.25 8" 18.12"

Wet Marine Fiberglass Exhaust 180° Returns EXHAUST SYSTEM

FIG 9586

These fittings are used in systems requiring loops.
ALL DIMENSIONS ARE IN INCHES
No. Each A B C
1200353 $83.90 1.50 4.50 3.75
1200333 142.35 2.00 6.00 5.75
1200199 147.45 3.00 8.44 7.50
