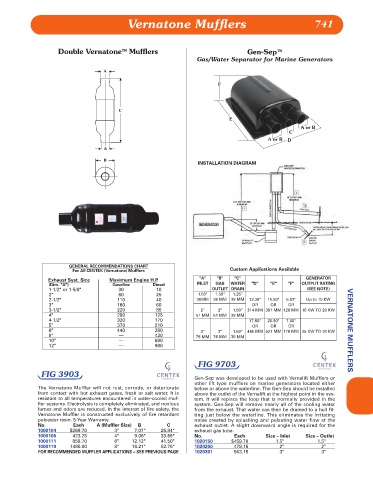

Vernatone Mufflers 741

Double Vernatone™ Mufflers Gen-Sep™
Gas/Water Separator for Marine Generators

F

E
A or B
C
A or B D

INSTALLATION DIAGRAM

GENERAL RECOMMENDATIONS CHART
For All CENTEK (Vernatone) Mufflers Custom Applications Available
Exhaust Syst. Size Maximum Engine H.P. "A" "B" "C" GENERATOR
(Dim. "A") Gasoline Diesel INLET GAS WATER "D" "E" "F" OUTPUT RATING
1-1/2" or 1-5/8" 30 10 OUTLET DRAIN (SEE NOTE)
2" 60 25 1.50" 1.50" 1.25"
2-1/2" 110 40 38MM 38 MM 38 MM 12.38" 15.63" 5.03" Up to 10 KW
3" 160 60 OR OR OR
3-1/2" 220 85 2" 2" 1.50" 314 MM 397 MM 128 MM 10 KW TO 20 KW
4" 280 125 51 MM 51 MM 38 MM
4-1/2" 320 170 17.50" 20.50" 7.00"
5" 370 210 OR OR OR
6" 440 280 3" 3" 1.50" 445 MM 521 MM 178 MM 25 KW TO 30 KW VERNATONE MUFFLERS
8" — 420 76 MM 76 MM 38 MM
10" — 680
12" — 900

FIG 9703
FIG 3903
Gen-Sep was developed to be used with Vernalift Mufflers or
other lift type mufflers on marine generators located either
The Vernatone Muffler will not rust, corrode, or deteriorate below or above the waterline. The Gen-Sep should be installed
from contact with hot exhaust gases, fresh or salt water. It is above the outlet of the Vernalift at the highest point in the sys-
resistant to all temperatures encountered in water-cooled muf- tem. It will replace the loop that is normally provided in the
fler systems. Electrolysis is completely eliminated, and noxious system. Gen-Sep will remove nearly all of the cooling water
fumes and odors are reduced. In the interest of fire safety, the from the exhaust. That water can then be drained to a hull fit-
Vernatone Muffler is constructed exclusively of fire retardant ting just below the waterline. This eliminates the irritating
polyester resin. 5-Year Warranty. noise created by splashing and pulsating water flow at the
No. Each A (Muffler Size) B C exhaust outlet. A slight downward angle is required for the
1000104 $269.70 3" 7.07" 25.84" exhaust gas tube.
1000106 423.25 4" 9.06" 33.69" No. Each Size – Inlet Size – Outlet
1000111 859.70 6" 12.12" 41.50" 1020150 $459.70 1.5" 1.5"
1000119 1485.00 8" 16.21" 52.75" 1020200 479.15 2" 2"
FOR RECOMMENDED MUFFLER APPLICATIONS – SEE PREVIOUS PAGE 1020301 563.15 3" 3"
