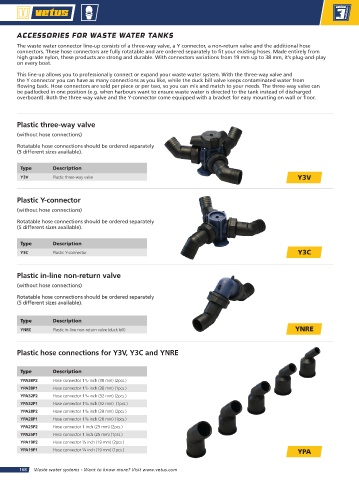

ACCESSORIES FOR WASTE WATER TANKS
The waste water connector line-up consists of a three-way valve, a Y connector, a non-return valve and the additional hose
connectors. These hose connectors are fully rotatable and are ordered separately to fit your existing hoses. Made entirely from
high grade nylon, these products are strong and durable. With connectors variations from 19 mm up to 38 mm, it’s plug-and-play
on every boat.

This line-up allows you to professionally connect or expand your waste water system. With the three-way valve and
the Y connector you can have as many connections as you like, while the duck bill valve keeps contaminated water from
flowing back. Hose connectors are sold per piece or per two, so you can mix and match to your needs. The three-way valve can
be padlocked in one position (e.g. when harbours want to ensure waste water is directed to the tank instead of discharged
overboard). Both the three-way valve and the Y-connector come equipped with a bracket for easy mounting on wall or floor.

Plastic three-way valve
(without hose connections)

Rotatable hose connections should be ordered separately
(5 different sizes available).

Type Description
Y3V Plastic three-way valve Y3V

Plastic Y-connector

(without hose connections)
Rotatable hose connections should be ordered separately
(5 different sizes available).

Type Description
Y3C Plastic Y-connector Y3C

Plastic in-line non-return valve
(without hose connections)

Rotatable hose connections should be ordered separately
(5 different sizes available).

Type Description
YNRE Plastic in-line non-return valve (duck bill) YNRE

Plastic hose connections for Y3V, Y3C and YNRE

Type Description
YPA38P2 Hose connector 1 /2 inch (38 mm) (2pcs.)
1
YPA38P1 Hose connector 1 /2 inch (38 mm) (1pcs.)
1
YPA32P2 Hose connector 1 /4 inch (32 mm) (2pcs.)
1
YPA32P1 Hose connector 1 /4 inch (32 mm) (1pcs.)
1
YPA28P2 Hose connector 1 /8 inch (28 mm) (2pcs.)
1
1
YPA28P1 Hose connector 1 /8 inch (28 mm) (1pcs.)
YPA25P2 Hose connector 1 inch (25 mm) (2pcs.)
YPA25P1 Hose connector 1 inch (25 mm) (1pcs.)
YPA19P2 Hose connector /4 inch (19 mm) (2pcs.)
3
YPA19P1 Hose connector /4 inch (19 mm) (1pcs.) YPA
3
168 Waste water systems - Want to know more? Visit www.vetus.com
