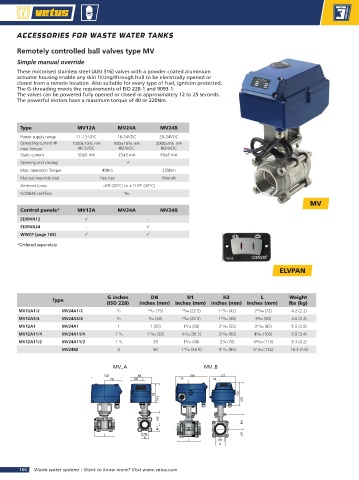

Page 166 - Vetus

ACCESSORIES FOR WASTE WATER TANKS

Remotely controlled ball valves type MV
Simple manual override
These motorised stainless steel (AISI 316) valves with a powder coated aluminium
actuator housing enable any skin fitting/through hull to be electrically opened or
closed from a remote location. Also suitable for every type of fuel, ignition protected.
The G-threading meets the requirements of ISO 228-1 and 9093-1.
The valves can be powered fully opened or closed in approximately 12 to 25 seconds.
The powerful motors have a maximum torque of 40 or 220Nm.

Type MV12A MV24A MV24B
Power supply range 11-13 VDC 18-24VDC 20-24VDC
Operating current @ 1000±10% mA 500±10% mA 2000±5% mA
max. torque @12VDC @24VDC @24VDC
Static current 50±5 mA 25±5 mA 60±5 mA
Opening and closing 
Max. operation Torque 40Nm 220Nm
Manual over-ride tool Hex Key Wrench
Ambient temp. -4°F (20°C) to +113°F (45°C)
ISO8846 certified Yes
MV
Control panels* MV12A MV24A MV24B
ELVPAN12  -
ELVPAN24 - 
WWCP (page 163)  
*Ordered seperately

ELVPAN

G inches DN H1 H2 L Weight
Type
(ISO 228) inches (mm) inches (mm) inches (mm) inches (mm) lbs (kg)
MV12A1/2 MV24A1/2 1 /2 19 /32 (15) 57 /64 (22.5) 1 /32 (42) 2 /64 (72) 4.2 (2.2)
53
31
57
5
MV12A3/4 MV24A3/4 3 /4 5 /32 (20) 57 /64 (22.5) 1 /64 (48) 3 /32 (80) 4.6 (2.4)
MV12A1 MV24A1 1 1 (25) 1 /16 (30) 2 /64 (55) 3 /32 (85) 5.5 (2.8)
3
11
11
MV12A11/4 MV24A11/4 1 /4 1 /64 (32) 1 /16 (36.5) 2 /64 (60) 4 /64 (105) 6.8 (3.4)
9
17
23
1
7
MV12A11/2 MV24A11/2 1 /2 38 1 /19 (40) 2 /4 (70) 4 /64 (113) 8.3 (4.2)
9
3
1
29
MV24B2 2 50 1 /16 (46.5) 3 /32 (85) 5 /64 (132) 16.3 (7.8)
11
13
13
MV..A MV..B
130 88 180 137
70 60 ) 75 64
78 130
114.5 178
H2
H2
H1
L DN H1
G
L DN
G
