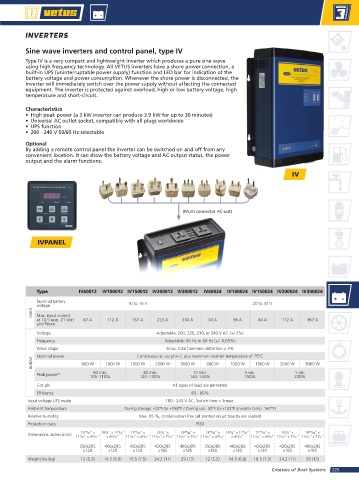

Page 225 - Vetus

INVERTERS

Sine wave inverters and control panel, type IV
Type IV is a very compact and lightweight inverter which produces a pure sine wave
using high frequency technology. All VETUS inverters have a shore power connection, a
built-in UPS (uninterruptable power supply) function and LED bar for indication of the
battery voltage and power consumption. Whenever the shore power is disconnected, the
inverter will immediately switch over the power supply without affecting the connected
equipment. The inverter is protected against overload, high or low battery voltage, high
temperature and short-circuit.

Characteristics
• High peak power (a 3 kW inverter can produce 3.9 kW for up to 30 minutes)
• Universal AC outlet socket, compatible with all plugs worldwide
• UPS function
• 200 - 240 V 50/60 Hz selectable
Optional
By adding a remote control panel the inverter can be switched on and off from any
convenient location. It can show the battery voltage and AC output status, the power
output and the alarm functions.
IV

(Multi connector AC-out)

IVPANEL

Type IV60012 IV100012 IV150012 IV200012 IV300012 IV60024 IV100024 IV150024 IV200024 IV300024
Nominal battery 10 to 16 V 20 to 32 V
voltage
input Max. input current
at 10.5 resp. 21 Volt 67 A 112 A 167 A 223 A 334 A 34 A 56 A 84 A 112 A 167 A
and Pnom.
Voltage Adjustable: 200, 220, 230, or 240 V AC (+/-2%)
Frequency Adjustable: 50 Hz or 60 Hz (+/- 0,05%)
Wave shape Sinus, total harmonic distortion < 3%
Nominal power Continuous at cos phi=1, at a maximum inverter temperature of 75°C
output 600 W 1000 W 1500 W 2000 W 3000 W 600 W 1000 W 1500 W 2000 W 3000 W
60 min.
30 min.
5 sec.
1 sec.
10 min.
Peak power* 105 - 110% 120 - 130% 140 - 145% 150% 200%
Cos phi All types of load are permitted
Efficiency 83 - 85%
Input voltage UPS mode 180 - 245 V AC, Switch time < 3msec.
Ambient temperature During storage: -22°F to +158°F / During use: 32°F to +122°F (inverter temp. 167°F)
Relative humidity Max. 95 %, condensation-free (all printed circuit boards are coated)
Protection class IP20
13 25 /32’’ x 15 3 /4’’ x 11 7 /32’’ 17 23 /32’’ x 16 1 /2’’ x 19 19 /64’’ x 13 25 /32’’ x 15 3 /4’’ x 11 7 /32’’ 17 23 /32’’ x 16 1 /2’’ x 19 19 /64’’ x
Dimensions inches (mm)
11 7 /32’’ x 4 23 /32’’ x 4 23 /32’’ 11 7 /32’’ x 4 23 /32’’ 11 7 /32’’ x 7 9 /32’’ 11 7 /32’’ x 7 9 /32’’ 11 7 /32’’ x 4 23 /32’’ x 4 23 /32’’ 11 7 /32’’ x 4 23 /32’’ 11 7 /32’’ x 7 9 /32’’ 11 7 /32’’ x 7 9 /32’’
350x285 400x285 450x285 420x285 490x285 350x285 400x285 450x285 420x285 490x285
x120 x120 x120 x185 x185 x120 x120 x120 x185 x185
Weight lbs (kg) 12 (5.3) 14.5 (6.6) 16.5 (7.5) 24.2 (11) 29 (13) 12 (5.3) 14.5 (6.6) 16.5 (7.5) 24.2 (11) 29 (13)
