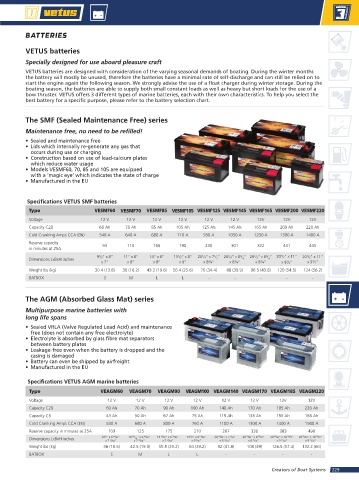

BATTERIES

VETUS batteries
Specially designed for use aboard pleasure craft
VETUS batteries are designed with consideration of the varying seasonal demands of boating. During the winter months
the battery will mostly be unused, therefore the batteries have a minimal rate of self-discharge and can still be relied on to
start the engine again the following season. We strongly advise the use of a float charger during winter storage. During the
boating season, the batteries are able to supply both small constant loads as well as heavy but short loads for the use of a
bow thruster. VETUS offers 3 different types of marine batteries, each with their own characteristics. To help you select the
best battery for a specific purpose, please refer to the battery selection chart.

The SMF (Sealed Maintenance Free) series
Maintenance free, no need to be refilled!
• Sealed and maintenance free
• Lids which internally re-generate any gas that
occurs during use or charging
• Construction based on use of lead-calcium plates
which reduce water usage
• Models VESMF60, 70, 85 and 105 are equipped
with a ‘magic eye’ which indicates the state of charge
• Manufactured in the EU

Specifications VETUS SMF batteries
Type VESMF60 VESMF70 VESMF85 VESMF105 VESMF125 VESMF145 VESMF165 VESMF200 VESMF220
Voltage 12 V 12 V 12 V 12 V 12 V 12 V 12V 12V 12V
Capacity C20 60 Ah 70 Ah 85 Ah 105 Ah 125 Ah 145 Ah 165 Ah 200 Ah 220 Ah
Cold Cranking Amps CCA (EN) 540 A 640 A 680 A 710 A 950 A 1050 A 1250 A 1300 A 1400 A
Reserve capacity
in minutes at 25A 93 110 165 190 230 301 322 431 445
1
9 /2” x 8” 11” x 8” 14” x 8” 13 /2” x 8” 20 /4” x 7 / ” 20 /4” x 8 / ” 20 /2” x 8 / ” 20 /2” x 11” 20 /2” x 11”
1
1
3
1
1
1
1
1
3
Dimensions LxBxH inches 2 4 4
x 7” x 8” x 8” x 9” x 8 /4” x 8 /4” x 8 /4” x 9 /2” x 9 /2”
3
3
3
1
1
Weight lbs (kg) 30.4 (13.8) 36 (16.2) 43.2 (19.6) 56.4 (25.6) 76 (34.4) 88 (39.9) 96.5 (43.8) 120 (54.5) 124 (56.2)
BATBOX S M L L - - - - -
The AGM (Absorbed Glass Mat) series
Multipurpose marine batteries with
long life spans
• Sealed VRLA (Valve Regulated Lead Acid) and maintenance
free (does not contain any free electrolyte)
• Electrolyte is absorbed by glass fibre mat separators
between battery plates
• Leakage-free even when the battery is dropped and the
casing is damaged
• Battery can even be shipped by airfreight
• Manufactured in the EU
Specifications VETUS AGM marine batteries
Type VEAGM60 VEAGM70 VEAGM90 VEAGM100 VEAGM140 VEAGM170 VEAGM185 VEAGM220
Voltage 12 V 12 V 12 V 12 V 12 V 12 V 12V 12V
Capacity C20 60 Ah 70 Ah 90 Ah 100 Ah 140 Ah 170 Ah 185 Ah 220 Ah
Capacity C5 43 Ah 50 Ah 67 Ah 75 Ah 115 Ah 135 Ah 155 Ah 185 Ah
Cold Cranking Amps CCA (EN) 530 A 680 A 800 A 760 A 1100 A 1300 A 1400 A 1500 A
Reserve capacity in minutes at 25A 103 125 175 210 267 336 383 496
Dimensions LxBxH inches 9 1 /2” x 6 57 /64” 10 15 / 16 ” x 6 57 /64” 13 57 /64” x 6 57 /64” 13 1 /2” x 6 57 /64” 20 13 /64” x 7 7 /16” 20 13 /64” x 8 25 /32” 20 25 /64” x 10 25 /32” 20 25 /64” x 10 25 /32”
x 9 17 /32”
x 9 1 /16”
x 9 17 /32”
x 8 25 /32”
x 7 31 /64”
x 8 25 /32”
x 7 31 /64”
x 7 31 /64”
Weight lbs (kg) 36 (16.5) 42.5 (19.3) 55.5 (25.2) 64 (29.2) 92 (41.8) 108 (49) 126.5 (57.4) 132.2 (60)
BATBOX S M L L - - - -
Creators of Boat Systems 229
