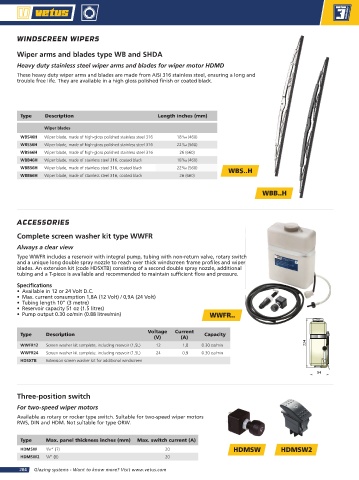

Page 284 - Vetus

WINDSCREEN WIPERS
Wiper arms and blades type WB and SHDA

Heavy duty stainless steel wiper arms and blades for wiper motor HDMD
These heavy duty wiper arms and blades are made from AISI 316 stainless steel, ensuring a long and
trouble free life. They are available in a high gloss polished finish or coated black.

Type Description Length inches (mm)

Wiper blades
WBS46H Wiper blade, made of high-gloss polished stainless steel 316 18 /64 (460)
7
WBS56H Wiper blade, made of high-gloss polished stainless steel 316 22 /64 (560)
3
WBS66H Wiper blade, made of high-gloss polished stainless steel 316 26 (660)
WBB46H Wiper blade, made of stainless steel 316, coated black 18 /64 (460)
7
WBB56H Wiper blade, made of stainless steel 316, coated black 22 /64 (560) WBS..H
3
WBB66H Wiper blade, made of stainless steel 316, coated black 26 (660)
WBB..H

ACCESSORIES
Complete screen washer kit type WWFR
Always a clear view
Type WWFR includes a reservoir with integral pump, tubing with non-return valve, rotary switch
and a unique long double spray nozzle to reach over thick windscreen frame profiles and wiper
blades. An extension kit (code HDSXTB) consisting of a second double spray nozzle, additional
tubing and a T-piece is available and recommended to maintain sufficient flow and pressure.
Specifications
• Available in 12 or 24 Volt D.C.
• Max. current consumption 1,8A (12 Volt) / 0,9A (24 Volt)
• Tubing length 10” (3 metre)
• Reservoir capacity 51 oz (1.5 litres)
• Pump output 0.30 oz/min (0.88 litres/min) WWFR..

Voltage Current
Type Description Capacity
(V) (A)
224
WWFR12 Screen washer kit complete, including resevoir (1,5L) 12 1,8 0.30 oz/min 224
WWFR24 Screen washer kit complete, including resevoir (1,5L) 24 0,9 0.30 oz/min
HDSXTB Extension screen washer kit for additional windscreen

154 84

Three-position switch

For two-speed wiper motors
Available as rotary or rocker type switch. Suitable for two-speed wiper motors
RWS, DIN and HDM. Not suitable for type ORW.

Type Max. panel thickness inches (mm) Max. switch current (A)
HDMSW 9 /32” (7) 20 HDMSW HDMSW2
HDMSW2 1 /4” (6) 20
284 Glazing systems - Want to know more? Visit www.vetus.com
