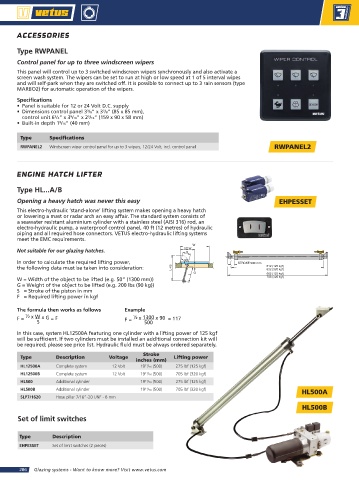

ACCESSORIES

Type RWPANEL
Control panel for up to three windscreen wipers
This panel will control up to 3 switched windscreen wipers synchronously and also activate a
screen wash system. The wipers can be set to run at high or low speed at 1 of 5 interval wipes
and will self-park when they are switched off. It is possible to connect up to 3 rain sensors (type
MARBO2) for automatic operation of the wipers.
Specifications
• Panel is suitable for 12 or 24 Volt D.C. supply
• Dimensions control panel 3 /8” x 3 /8” (85 x 85 mm),
3
3
control unit 6 /4” x 3 /16” x 2 /16” (159 x 90 x 58 mm)
5
9
1
• Built-in depth 1 /16” (40 mm)
9
Type Specifications
RWPANEL2 Windscreen wiper control panel for up to 3 wipers, 12/24 Volt, incl. control panel RWPANEL2

ENGINE HATCH LIFTER
Type HL...A/B

Opening a heavy hatch was never this easy EHPESSET
This electro-hydraulic ‘stand-alone’ lifting system makes opening a heavy hatch
or lowering a mast or radar arch an easy affair. The standard system consists of
a seawater resistant aluminium cylinder with a stainless steel (AISI 316) rod, an
electro-hydraulic pump, a waterproof control panel, 40 ft (12 metres) of hydraulic
piping and all required hose connectors. VETUS electro-hydraulic lifting systems
meet the EMC requirements.
Not suitable for our glazing hatches.

In order to calculate the required lifting power,
the following data must be taken into consideration: 612 (125 kgf)
632 (320 kgf)
662 (125 kgf)
W = Width of the object to be lifted (e.g. 50” (1300 mm)) 708 (320 kgf)
G = Weight of the object to be lifted (e.g. 200 lbs (90 kg))
S = Stroke of the piston in mm
F = Required lifting power in kgf
The formula then works as follows Example
F = ½ x W x G = F F = ½ x 1300 x 90 = 117
S 500
In this case, system HL12500A featuring one cylinder with a lifting power of 125 kgf
will be sufficient. If two cylinders must be installed an additional connection kit will
be required; please see price list. Hydraulic fluid must be always ordered separately.
Stroke
Type Description Voltage Lifting power
inches (mm)
HL12500A Complete system 12 Volt 19 /16 (500) 275 lbf (125 kgf)
11
HL12500B Complete system 12 Volt 19 /16 (500) 705 lbf (320 kgf)
11
HL500 Additional cylinder 19 /16 (500) 275 lbf (125 kgf)
11
HL500B Additional cylinder 19 /16 (500) 705 lbf (320 kgf) HL500A
11
SLP7/1620 Hose pillar 7/16”-20 UNF - 8 mm
HL500B
Set of limit switches

Type Description
EHPESSET Set of limit switches (2 pieces)

286 Glazing systems - Want to know more? Visit www.vetus.com
