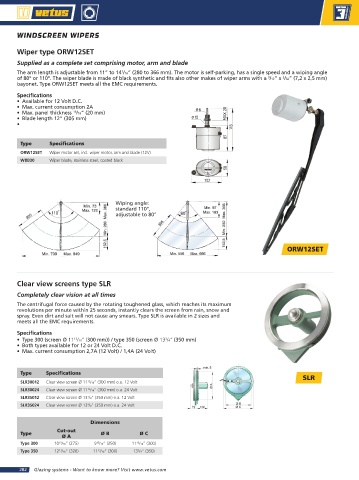

WINDSCREEN WIPERS

Wiper type ORW12SET
Supplied as a complete set comprising motor, arm and blade
7
The arm length is adjustable from 11” to 14 /16” (280 to 366 mm). The motor is self-parking, has a single speed and a wiping angle
of 80º or 110º. The wiper blade is made of black synthetic and fits also other makes of wiper arms with a /12” x /32” (7,2 x 2,5 mm)
3
9
bayonet. Type ORW12SET meets all the EMC requirements.
Specifications
• Available for 12 Volt D.C.
• Max. current consumption 2A
• Max. panel thickness /16” (20 mm)
13
• Blade length 12” (305 mm)
•

Type Specifications
ORW12SET Wiper motor set, incl. wiper motor, arm and blade (12V)
WBB30 Wiper blade, stainless steel, coated black

Wiping angle:
standard 110°,
adjustable to 80°

ORW12SET

Clear view screens type SLR
Completely clear vision at all times
The centrifugal force caused by the rotating toughened glass, which reaches its maximum
revolutions per minute within 25 seconds, instantly clears the screen from rain, snow and
spray. Even dirt and salt will not cause any smears. Type SLR is available in 2 sizes and
meets all the EMC requirements.
Specifications
13
3
• Type 300 (screen Ø 11 /16” (300 mm)) / type 350 (screen Ø 13 /4” (350 mm)
• Both types available for 12 or 24 Volt D.C.
• Max. current consumption 2,7A (12 Volt) / 1,4A (24 Volt)
Type Specifications
SLR
SLR30012 Clear view screen Ø 11 /16” (300 mm) o.a. 12 Volt
13
SLR30024 Clear view screen Ø 11 /16” (300 mm) o.a. 24 Volt
13
SLR35012 Clear view screen Ø 13 /4” (350 mm) o.a. 12 Volt
3
SLR35024 Clear view screen Ø 13 /4” (350 mm) o.a. 24 Volt
3
Dimensions
Cut-out
Type Ø B Ø C
Ø A
Type 300 10 /16” (275) 9 /16” (250) 11 /16” (300)
13
13
13
13
13
Type 350 12 /16” (326) 11 /16” (300) 13 /4” (350)
3
282 Glazing systems - Want to know more? Visit www.vetus.com
