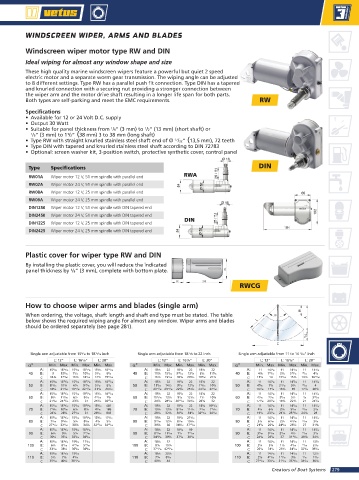

WINDSCREEN WIPER, ARMS AND BLADES

Windscreen wiper motor type RW and DIN
Ideal wiping for almost any window shape and size
These high quality marine windscreen wipers feature a powerful but quiet 2 speed
electric motor and a separate worm gear transmission. The wiping angle can be adjusted
to 8 different settings. Type RW has a parallel push fit connection. Type DIN has a tapered
and knurled connection with a securing nut providing a stronger connection between
the wiper arm and the motor drive shaft resulting in a longer life span for both parts.
Both types are self-parking and meet the EMC requirements. RW
Specifications
• Available for 12 or 24 Volt D.C. supply
• Output 30 Watt
• Suitable for panel thickness from /8” (3 mm) to /2” (13 mm) (short shaft) or
1
1
1
1 /8” (3 mm) to 1 /2” (38 mm) 3 to 38 mm (long shaft)
• Type RW with straight knurled stainless steel shaft end of Ø /32” (13,5 mm), 72 teeth
17
• Type DIN with tapered and knurled stainless steel shaft according to DIN 72783
• Optional: screen washer kit, 3-position switch, protective synthetic cover, control panel
Type Specifications DIN
RW01A Wiper motor 12 V, 51 mm spindle with parallel end RWA
RW02A Wiper motor 24 V, 51 mm spindle with parallel end
RW08A Wiper motor 12 V, 25 mm spindle with parallel end
RW09A Wiper motor 24 V, 25 mm spindle with parallel end
DIN1250 Wiper motor 12 V, 51 mm spindle with DIN tapered end
DIN2450 Wiper motor 24 V, 51 mm spindle with DIN tapered end
DIN
DIN1225 Wiper motor 12 V, 25 mm spindle with DIN tapered end
DIN2425 Wiper motor 24 V, 25 mm spindle with DIN tapered end

Plastic cover for wiper type RW and DIN
By installing the plastic cover, you will reduce the indicated
panel thickness by /8” (3 mm), complete with bottom plate.
1
RWCG

How to choose wiper arms and blades (single arm)
When ordering, the voltage, shaft length and shaft end type must be stated. The table
below shows the required wiping angle for almost any window. Wiper arms and blades
should be ordered separately (see page 281).

Single arm adjustable from 15 9 /16 to 18 15 /16 inch Single arm adjustable from 18 5 /8 to 22 inch Single arm adjustable from 11 to 14 7 /16” inch
L: 12” L: 16 1 /8” L: 20” L: 12” L: 16 1 /8” L: 20” L: 12” L: 16 1 /8” L: 20”
α° Min. Max. Min. Max. Min. Max. α° Min. Max. Min. Max. Min. Max. α° Min. Max. Min. Max. Min. Max.
A: 15 9 /16 18 15 /16 15 9 /16 18 15 /16 15 9 /16 18 15 /16 A: 18 5 /8 22 18 5 /8 22 18 5 /8 22 A: 11 14 7 /16 11 14 7 /16 11 14 7 /16
40 B: 9 12 3 /16 7 1 /16 10 3 /16 5 3 /16 8 3 /8 40 B: 11 7 /8 15 1 /16 9 15 /16 13 1 /8 8 1 /8 11 5 /16 40 B: 4 3 /4 7 15 /16 2 3 /4 5 15 /16 15 /16 4 1 /8
c: 14 3 /4 17 1 /16 16 1 /8 18 7 /16 17 1 /2 19 13 /16 c: 16 7 /8 19 3 /16 18 1 /4 20 9 /16 19 9 /16 21 7 /8 c: 11 5 /8 14 13 1 /16 15 3 /8 14 3 /8 16 11 /16
A: 15 9 /16 18 15 /16 15 9 /16 18 15 /16 15 9 /16 18 15 /16 A: 18 5 /8 22 18 5 /8 22 18 5 /8 22 A: 11 14 7 /16 11 14 7 /16 11 14 7 /16
50 B: 8 11 /16 11 3 /4 6 3 /4 9 13 /16 5 1 /16 8 1 /8 50 B: 11 7 /16 14 1 /2 9 9 /16 12 5 /8 7 13 /16 10 7 /8 50 B: 4 9 /16 7 5 /8 2 11 /16 5 3 /4 15 /16 4
c: 18 1 /4 21 1 /16 19 15 /16 22 13 /16 21 5 /8 24 7 /16 c: 20 13 /16 23 11 /16 22 9 /16 25 7 /16 24 3 /16 27 1 /16 c: 14 7 /16 17 1 /4 16 1 /8 19 17 3 /4 20 5 /8
A: 15 9 /16 18 15 /16 15 9 /16 18 15 /16 15 9 /16 18 15 /16 A: 18 5 /8 22 18 5 /8 22 18 5 /8 22 A: 11 14 7 /16 11 14 7 /16 11 14 7 /16
60 B: 8 1 /4 11 3 /16 6 1 /2 9 7 /16 4 13 /16 7 3 /4 60 B: 10 15 /16 13 7 /8 9 1 /8 12 1 /16 7 1 /2 10 3 /8 60 B: 4 5 /16 7 5 /16 2 9 /16 5 1 /2 7 /8 3 13 /16
c: 21 9 /16 24 15 /16 23 5 /8 27 25 9 /16 28 15 /16 c: 24 5 /8 28 1 /16 26 11 /16 30 1 /16 28 5 /8 32 c: 17 1 /16 20 7 /16 19 1 /8 22 1 /2 21 24 7 /16
A: 15 9 /16 18 15 /16 15 9 /16 18 15 /16 15 9 /16 481 A: 18 5 /8 22 18 5 /8 22 18 5 /8 19 11 /16 A: 11 14 7 /16 11 14 7 /16 11 14 7 /16
70 B: 7 13 /16 10 9 /16 6 1 /8 8 7 /8 4 9 /16 186 70 B: 10 3 /8 13 1 /8 8 11 /16 11 7 /16 7 1 /16 7 15 /16 70 B: 4 1 /8 6 7 /8 2 3 /8 5 3 /16 13 /16 3 5 /8
c: 24 3 /4 28 5 /8 27 1 /16 31 29 5 /16 843 c: 28 1 /4 32 1 /8 30 5 /8 34 1 /2 32 13 /16 34 1 /16 c: 19 1 /2 23 7 /16 21 7 /8 25 13 /16 24 1 /8 28
A: 15 9 /16 18 15 /16 15 9 /16 18 15 /16 15 9 /16 17 3 /16 A: 18 5 /8 22 18 5 /8 21 5 /16 A: 11 14 7 /16 11 14 7 /16 11 14 7 /16
80 B: 7 5 /16 9 15 /16 5 3 /4 8 5 /16 4 1 /4 5 1 /2 80 B: 9 11 /16 12 1 /4 8 1 /16 10 3 /16 80 B: 3 7 /8 6 7 /16 2 1 /4 4 13 /16 13 /16 3 3 /8
c: 27 11 /16 32 1 /16 30 3 /8 34 3 /4 32 13 /16 34 15 /16 c: 31 5 /8 36 34 5 /16 37 13 /16 c: 21 7 /8 26 1 /4 24 9 /16 28 7 /8 27 31 3 /8
A: 15 9 /16 18 15 /16 15 9 /16 18 15 /16 A: 18 5 /8 22 18 5 /8 19 A: 11 14 7 /16 11 14 7 /16 11 14 7 /16
90 B: 6 3 /4 9 1 /8 5 1 /4 7 11 /16 90 B: 8 15 /16 11 5 /16 7 1 /2 7 11 /16 90 B: 3 9 /16 5 15 /16 2 1 /16 4 1 /2 11 /16 3 1 /8
c: 30 1 /2 35 1 /4 33 7 /16 38 3 /16 c: 34 13 /16 39 5 /8 37 3 /4 38 1 /4 c: 24 1 /8 28 7 /8 27 31 13 /16 29 3 /4 34 1 /2
A: 15 9 /16 18 15 /16 15 9 /16 17 1 /16 A: 18 5 /8 22 A: 11 14 7 /16 11 14 7 /16 11 13 3 /4
100 B: 6 1 /8 8 5 /16 4 13 /16 5 13 /16 100 B: 8 1 /8 10 1 /4 100 B: 3 1 /4 5 3 /8 1 7 /8 4 1 /16 11 /16 2 7 /16
c: 33 1 /16 38 1 /4 36 3 /16 38 9 /16 c: 37 11 /16 42 15 /16 c: 26 1 /8 31 1 /4 29 1 /4 34 7 /16 32 3 /16 36 7 /16
A: 15 9 /16 18 15 /16 15 9 /16 A: 18 5 /8 20 7 /8 A: 11 14 7 /16 11 14 7 /16 11 12 1 /2
110 B: 5 1 /2 7 3 /8 4 5 /16 110 B: 7 1 /4 8 9 /16 110 B: 2 7 /8 4 13 /16 1 11 /16 3 5 /8 9 /16 1 7 /16
c: 35 5 /16 40 7 /8 38 11 /16 c: 40 3 /8 44 c: 27 15 /16 33 7 /16 31 5 /16 36 13 /16 34 7 /16 36 7 /8
