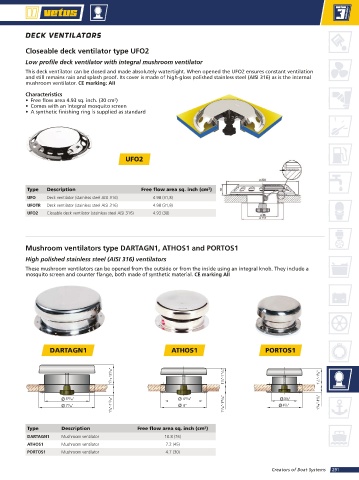

Page 291 - Vetus

DECK VENTILATORS

Closeable deck ventilator type UFO2
Low profile deck ventilator with integral mushroom ventilator
This deck ventilator can be closed and made absolutely watertight. When opened the UFO2 ensures constant ventilation
and still remains rain and splash proof. Its cover is made of high-gloss polished stainless steel (AISI 316) as is the internal
mushroom ventilator. CE marking: AII

Characteristics
2
• Free flow area 4.93 sq. inch. (30 cm )
• Comes with an integral mosquito screen
• A synthetic finishing ring is supplied as standard

UFO2

Type Description Free flow area sq. inch (cm )
2
UFO Deck ventilator (stainless steel AISI 316) 4.98 (31,8)
UFOTR Deck ventilator (stainless steel AISI 316) 4.98 (31,8)
UFO2 Closable deck ventilator (stainless steel AISI 316) 4.93 (30)

Mushroom ventilators type DARTAGN1, ATHOS1 and PORTOS1

High polished stainless steel (AISI 316) ventilators
These mushroom ventilators can be opened from the outside or from the inside using an integral knob. They include a
mosquito screen and counter flange, both made of synthetic material. CE marking AII

DARTAGN1 ATHOS1 PORTOS1

1 7 /16"-2 1 /16" 1 1 /4"-1 11 /16" 1 1 /4"-1 3 /4"

5 13 /16" 4 13 /16" 3 3 /8"
7 5 /16" 1 1 /4"-1 15 /16" 6" 1 7 /16"-1 15 /16" 4 5 /8" 1 1 /16"-1 5 /8"

Type Description Free flow area sq. inch (cm )
2
DARTAGN1 Mushroom ventilator 10.8 (76)
ATHOS1 Mushroom ventilator 7.2 (45)
PORTOS1 Mushroom ventilator 4.7 (30)

Creators of Boat Systems 291
